Figure 4 | Scientific Reports

Figure 4

From: To investigate the mechanism of Yiwei Decoction in the treatment of premature ovarian insufficiency-related osteoporosis using transcriptomics, network pharmacology and molecular docking techniques

Figure 4

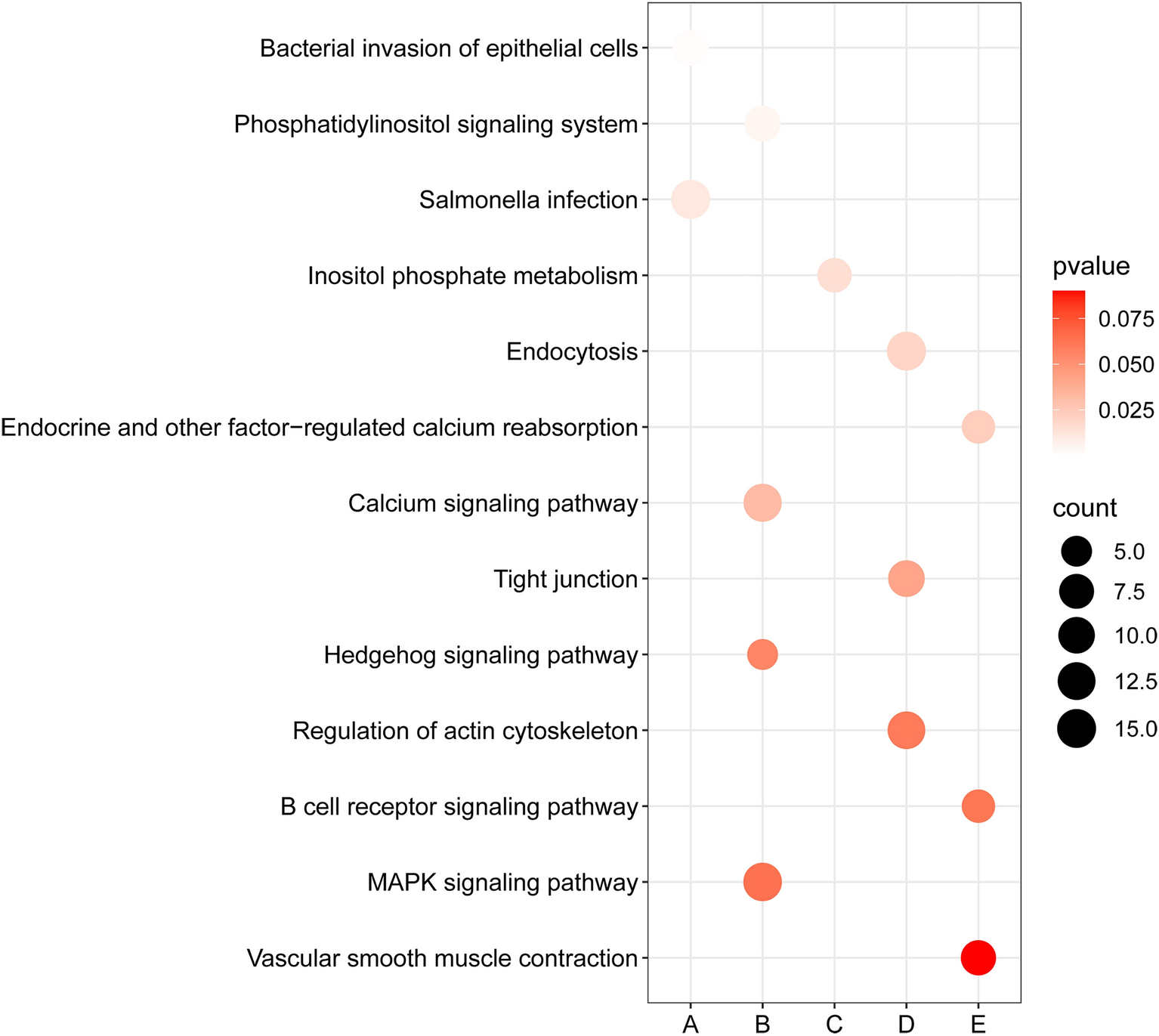

DEmRNA-enriched pathways between groups A and B. The bubble color represents the P value; the lighter the color, the greater the confidence and the bubble size represents the number of DEmRNAs enriched in the pathway. The path type is represented by the letters on the X-axis. (A) Diseases of man; (B) environmental data processing; (C) metabolism; (D) cellular procedures; (E) organic systems.
