Figure 9
From: Numerical analysis of 40 MW HTS motor electromagnetic characteristics for ship electric propulsion

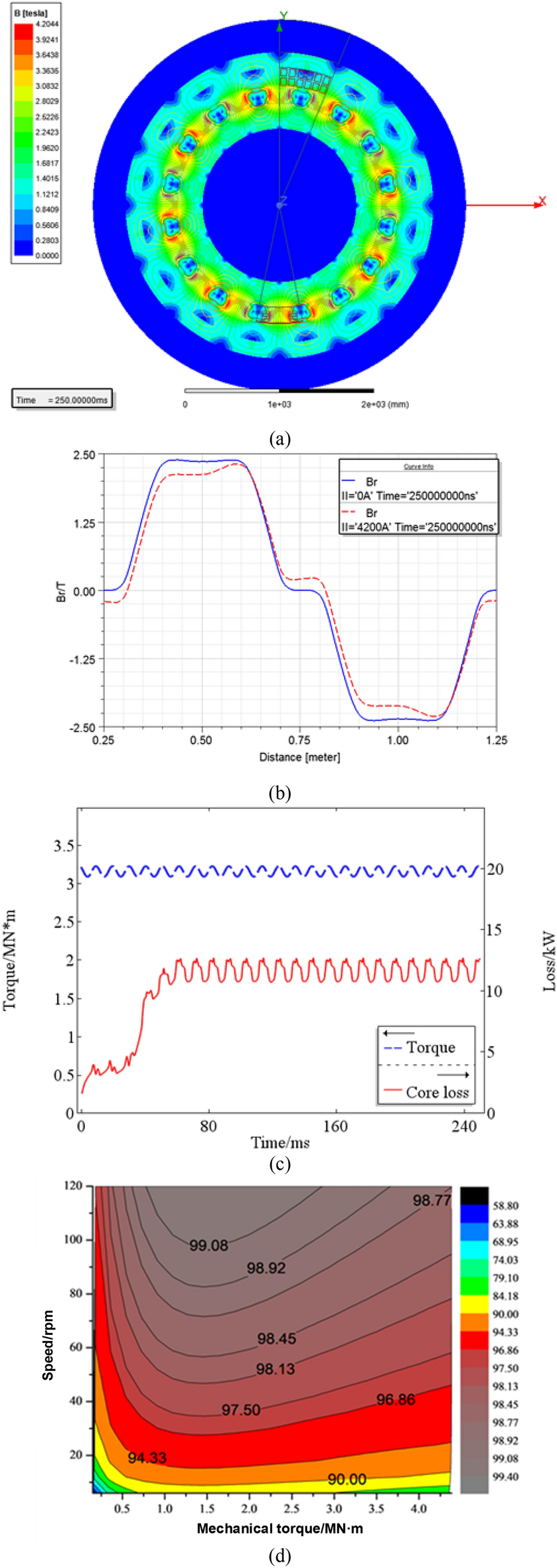

Magnetic characteristics of the HTS motor, they should be listed as: (a) Magnetic flux density distribution; (b) Air-gap magnetic flux density ;(c) Time evolution of calculated torque and core loss;(d) MAP figure.
