Figure 10

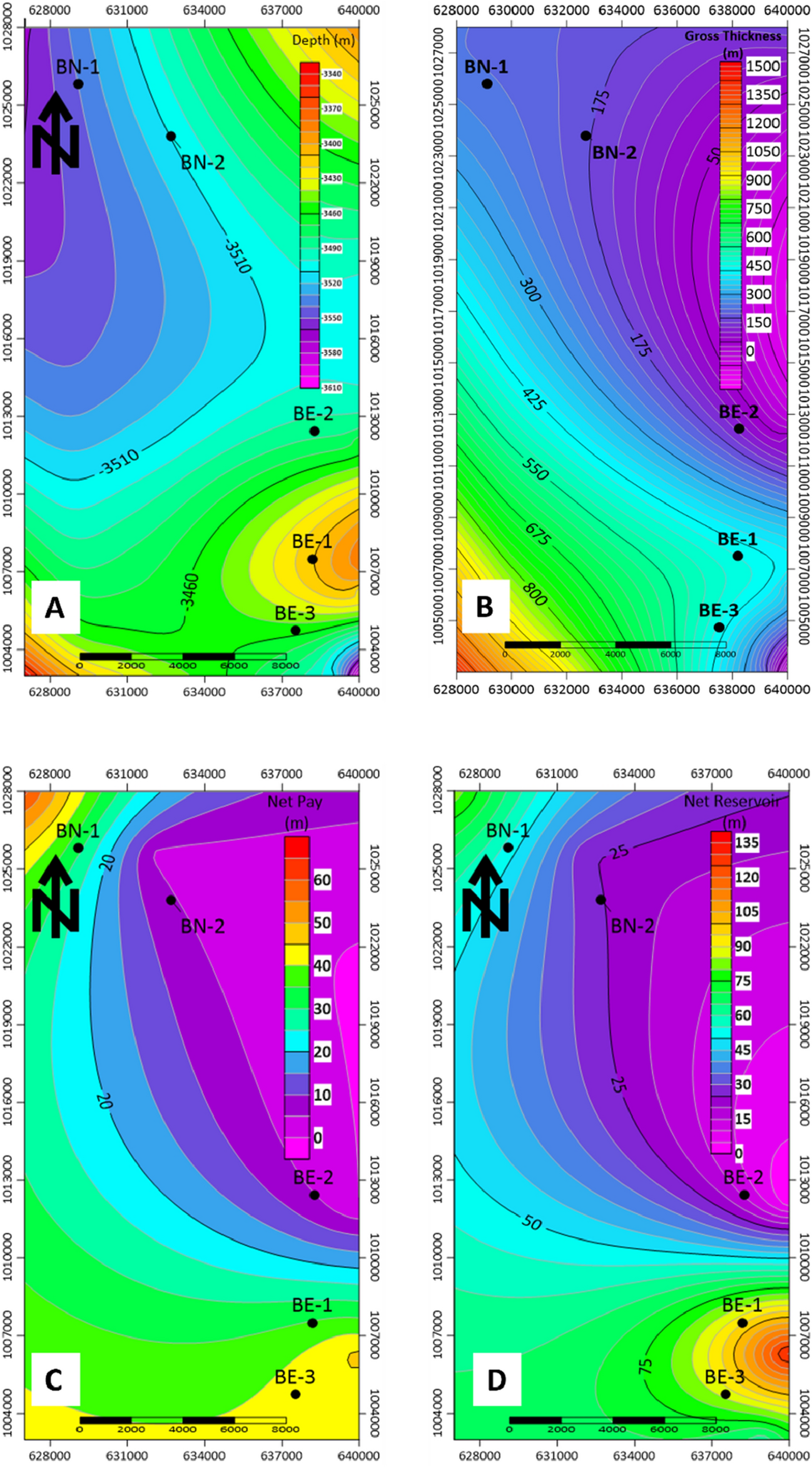

(a) Contour map of depth to Abu Madi top, (b) contour map of the Gross thickness, (c) contour map of the Net reservoir of Abu Madi Formation, and (d) net pay (effective thickness) of Abu Madi Formation.
Figure 10 | Scientific Reports
(a) Contour map of depth to Abu Madi top, (b) contour map of the Gross thickness, (c) contour map of the Net reservoir of Abu Madi Formation, and (d) net pay (effective thickness) of Abu Madi Formation.
