Figure 7
From: Mechanical characteristics and energy evolution in a rock mass with a weak structural plane

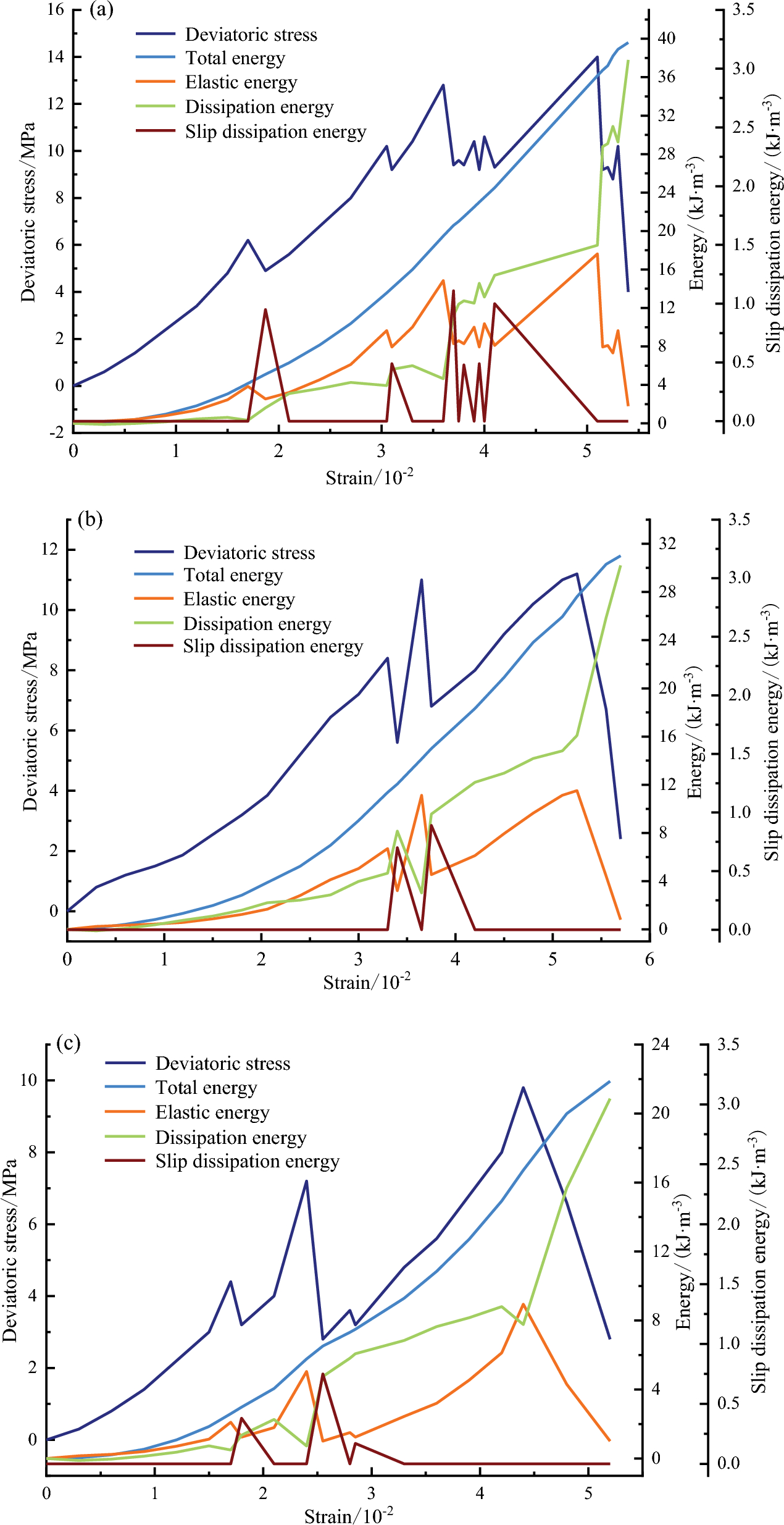

The relationship curve between deviatoric stress–strain and energy parameters under different dip angles of weak structural plane. (a) \(\beta =25^\circ\), (b) \(\beta =30^\circ\), (c) \(\beta =35^\circ\).
