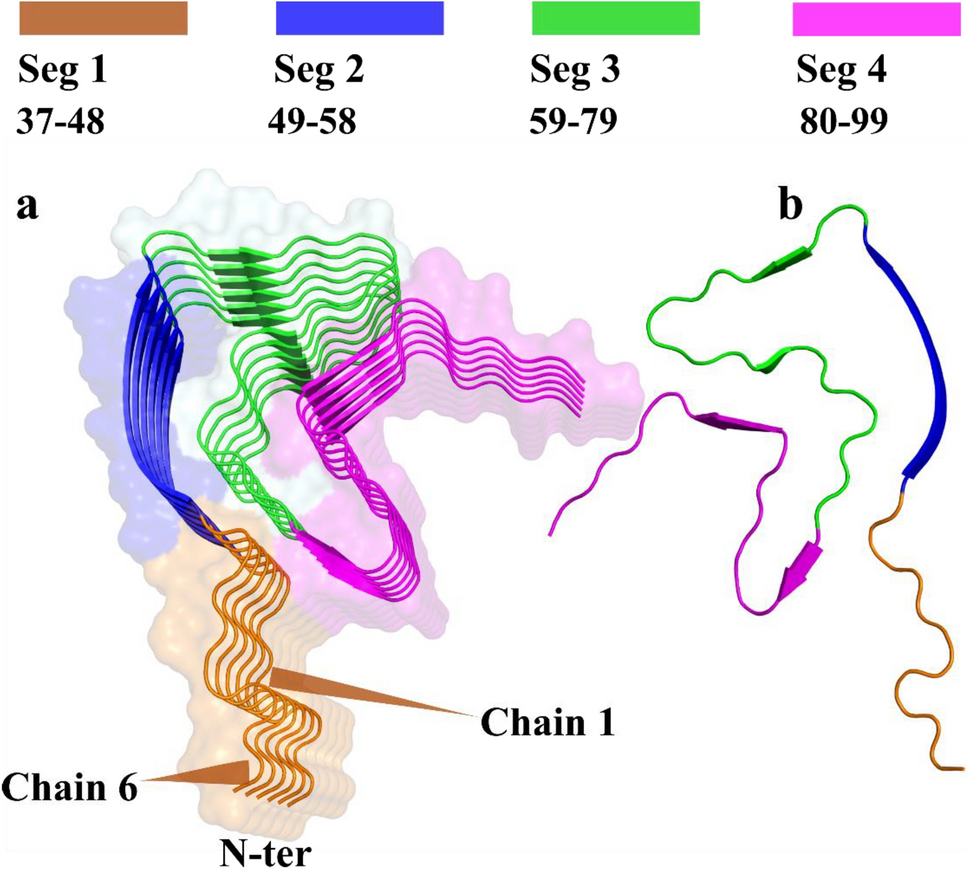

Four defined segments of α-Syn chains (PDB: 6A6B). In this study. We divided α-Syn into four fragments based on the degree of structural order or the point at which the chain initiated a shape turn. (a) The six oligomer chains of PDB: 6A6B crystal structure are divided into four segments from aa 37–aa 48 colored in orange, aa 49–aa 58 blue, aa 59–79 green and aa 80–aa 99 in magenta. (b) A single chain of the oligomer is displayed in the same color scheme as above. aa amino acids.
