Figure 3
From: Research and experiment on the trenching performance of orchard trenching device

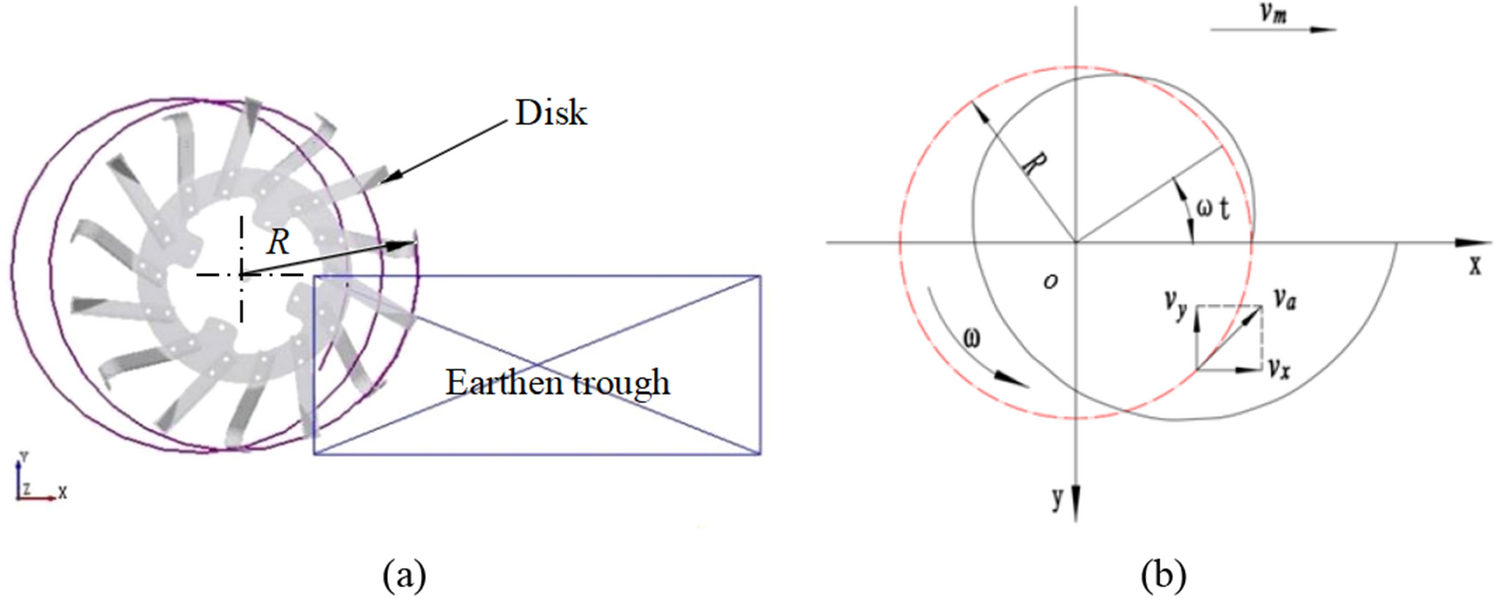

The movement path of the cutting point of the grooving tool. (a) Particle motion path at cutter head radius R; (b) Motion trajectory equation of trenching device.
