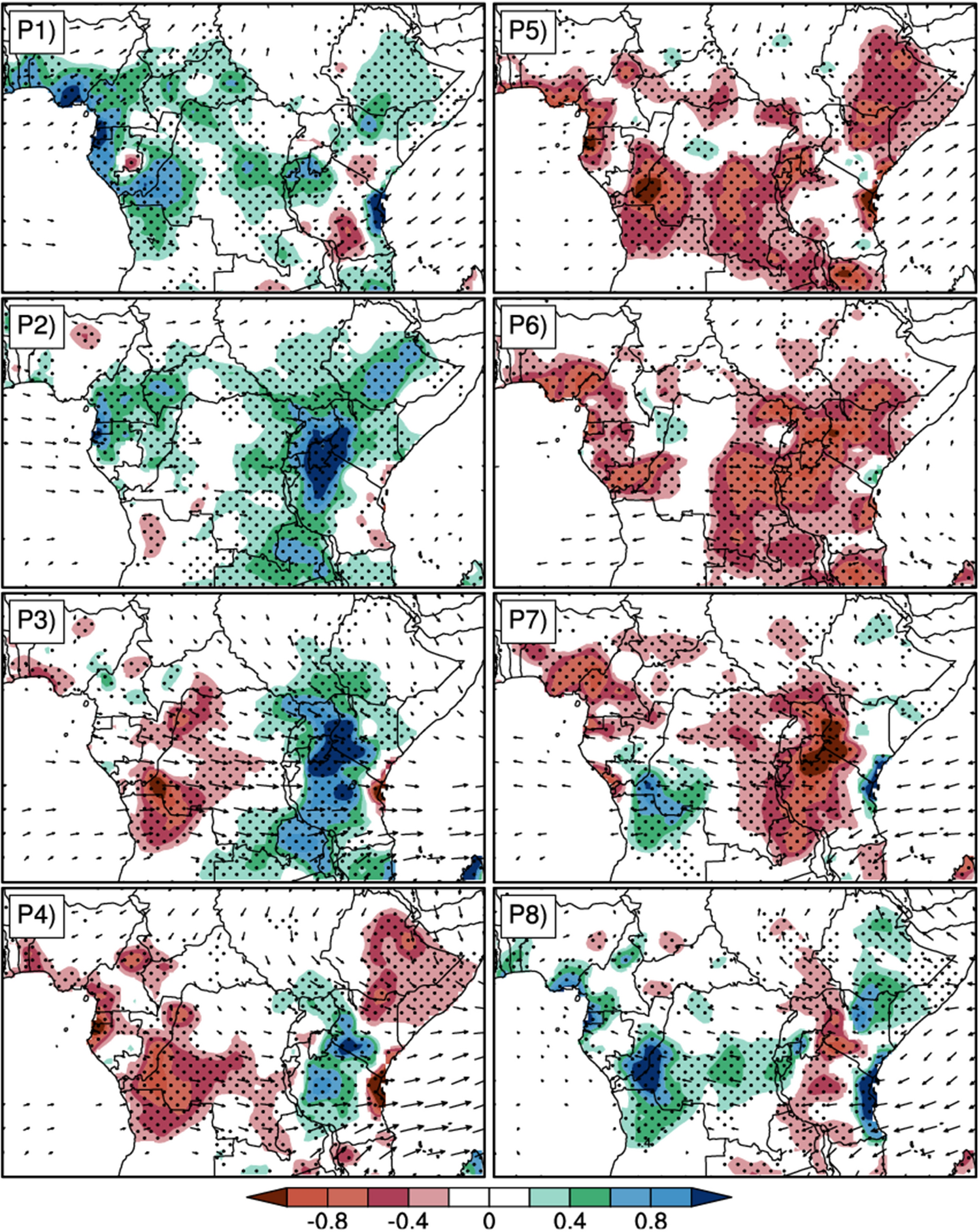

Figure 9
Composite of the daily filtered precipitation anomalies for each phase of the MJO. Anomalies between 0.05 mm and 0.05mm2 are not represented. Dotted lines indicate areas where the t-test is significant at 95%. Arrows indicate filtered wind anomalies at 850 hPa. Anomalies between − 0.01 and 0.01 m/s are not represented, and the reference magnitude of the wind is 2 m/s.
