Figure 2 | Scientific Reports

Figure 2

From: Morphological, histological and gene-expression analyses on stolonization in the Japanese Green Syllid, Megasyllis nipponica (Annelida, Syllidae)

Figure 2

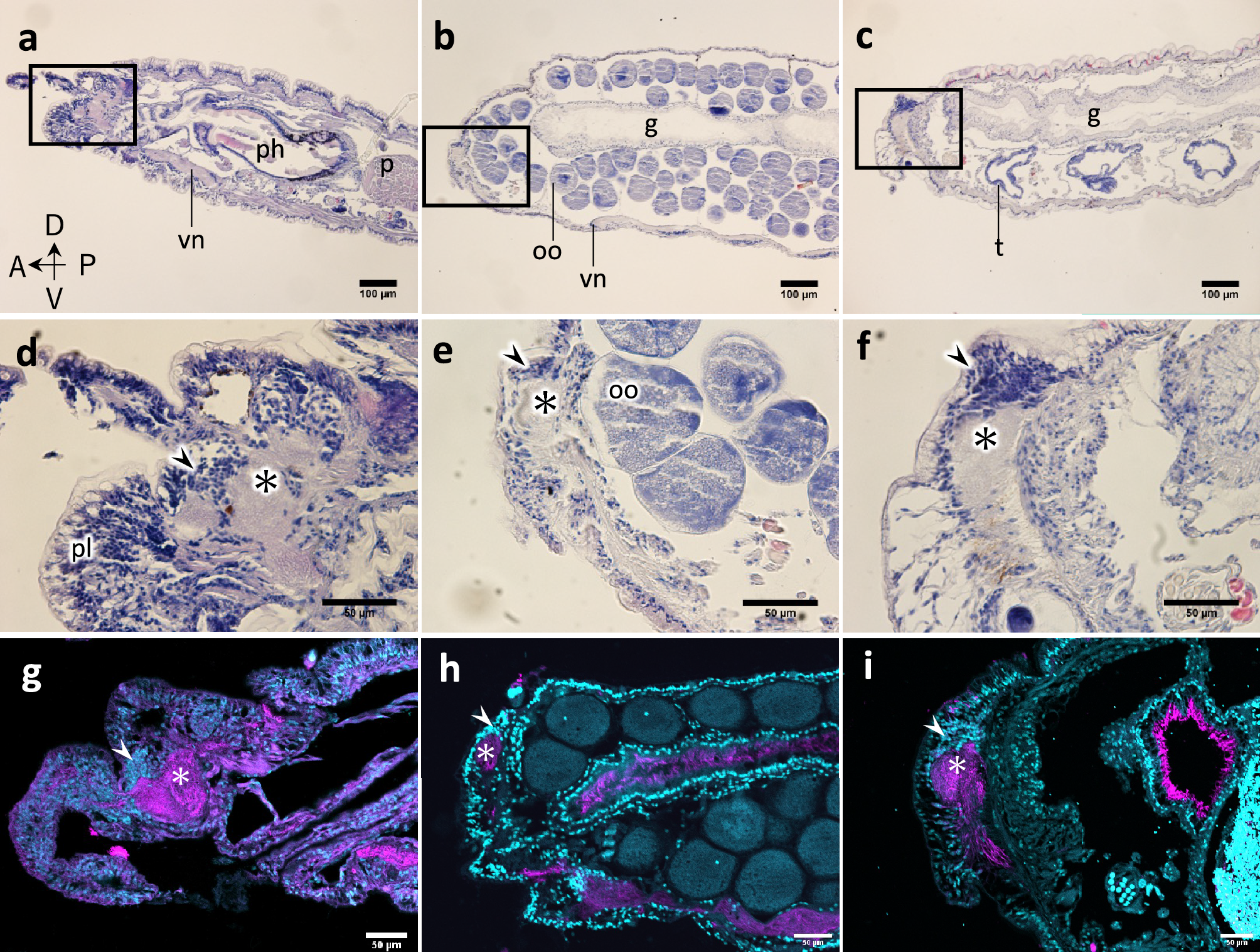

Histological comparisons between stock (a, d, g) and stolon (b, e, h: female stolon; c, f, i: male stolon) heads. Sagittal section of a head stained with hematoxylin and eosin (a)–(f). (d)–(f) Magnified views of rectangular regions of (a)–(c) respectively. (g)–(i) Sagittal sections stained with anti-acetylated-alpha-tubulin antibody (magenta) and DAPI (cyan). Asterisk shows nervous tissue, and arrowheads show cell-dense regions. g gut, oo oocytes, p proventricle, ph pharynx, pl palps, t testis, vn ventral nerve cord.
