Figure 7

From: Morphological, histological and gene-expression analyses on stolonization in the Japanese Green Syllid, Megasyllis nipponica (Annelida, Syllidae)

Figure 7

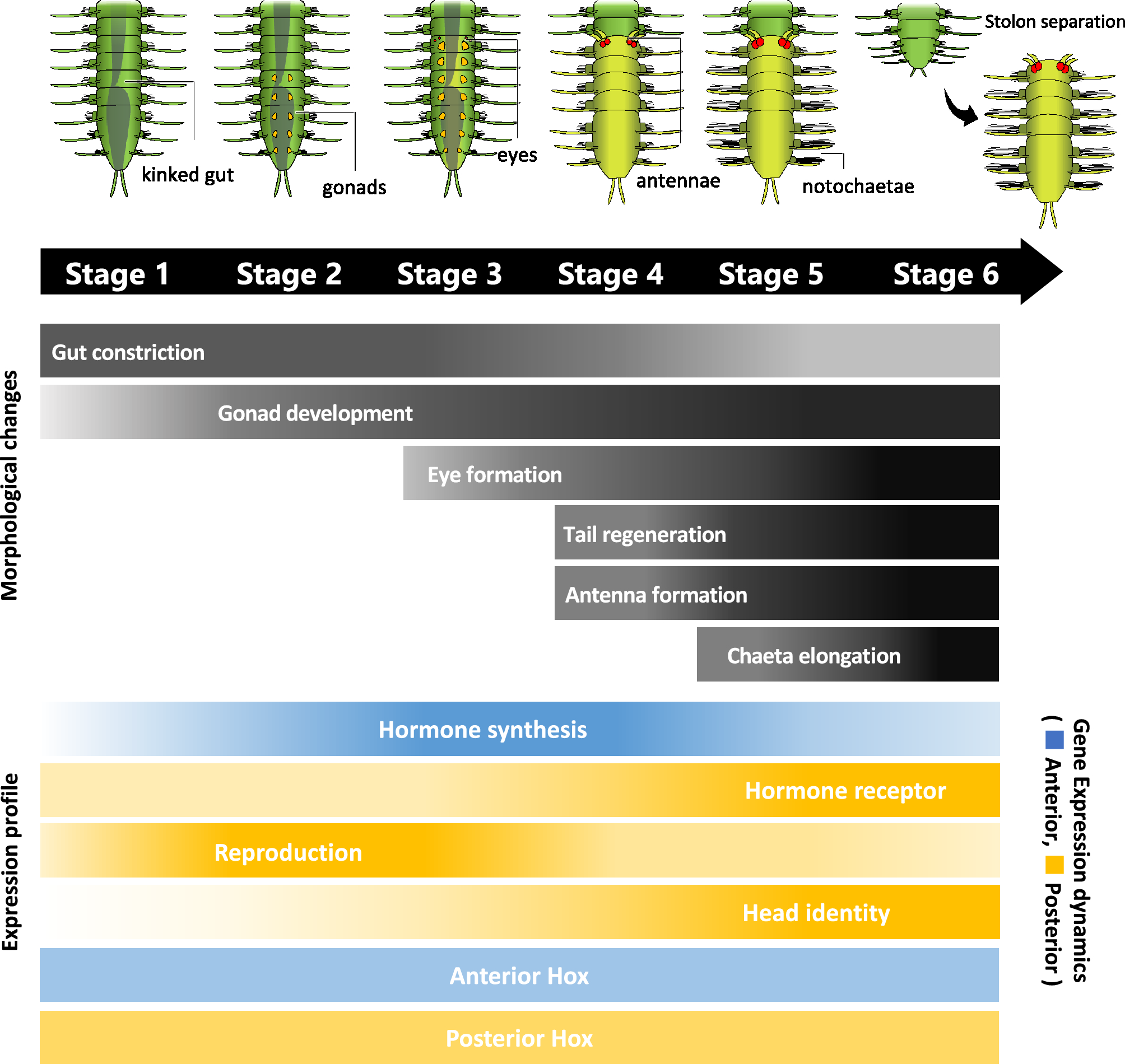

Schematic diagram showing the developmental process of stolonization. The top illustration shows staging based on morphological characteristics. The gray bands show morphological changes during developmental events. The lower bands show the transitions in gene expressions upregulated in anterior (blue) and posterior (orange) body parts.
