Figure 3

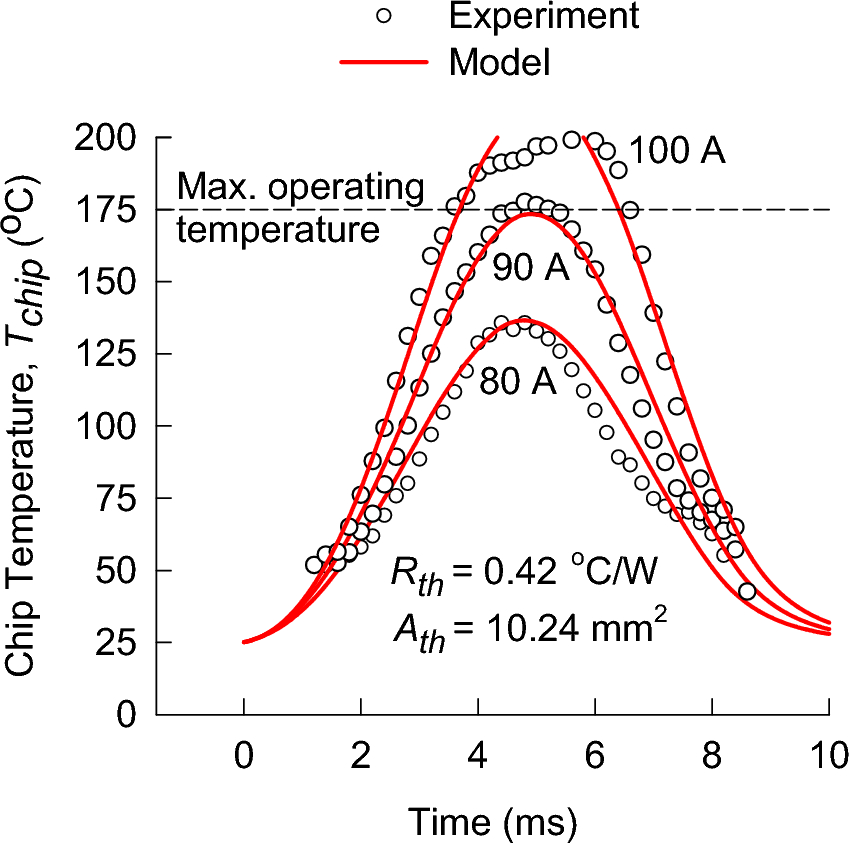

The experimental data (symbols) and the theoretical-chip temperature model (lines) for three peak surge currents applied to a commercial 1200Â V MPS diode.
Figure 3 | Scientific Reports
The experimental data (symbols) and the theoretical-chip temperature model (lines) for three peak surge currents applied to a commercial 1200Â V MPS diode.
