Figure 7

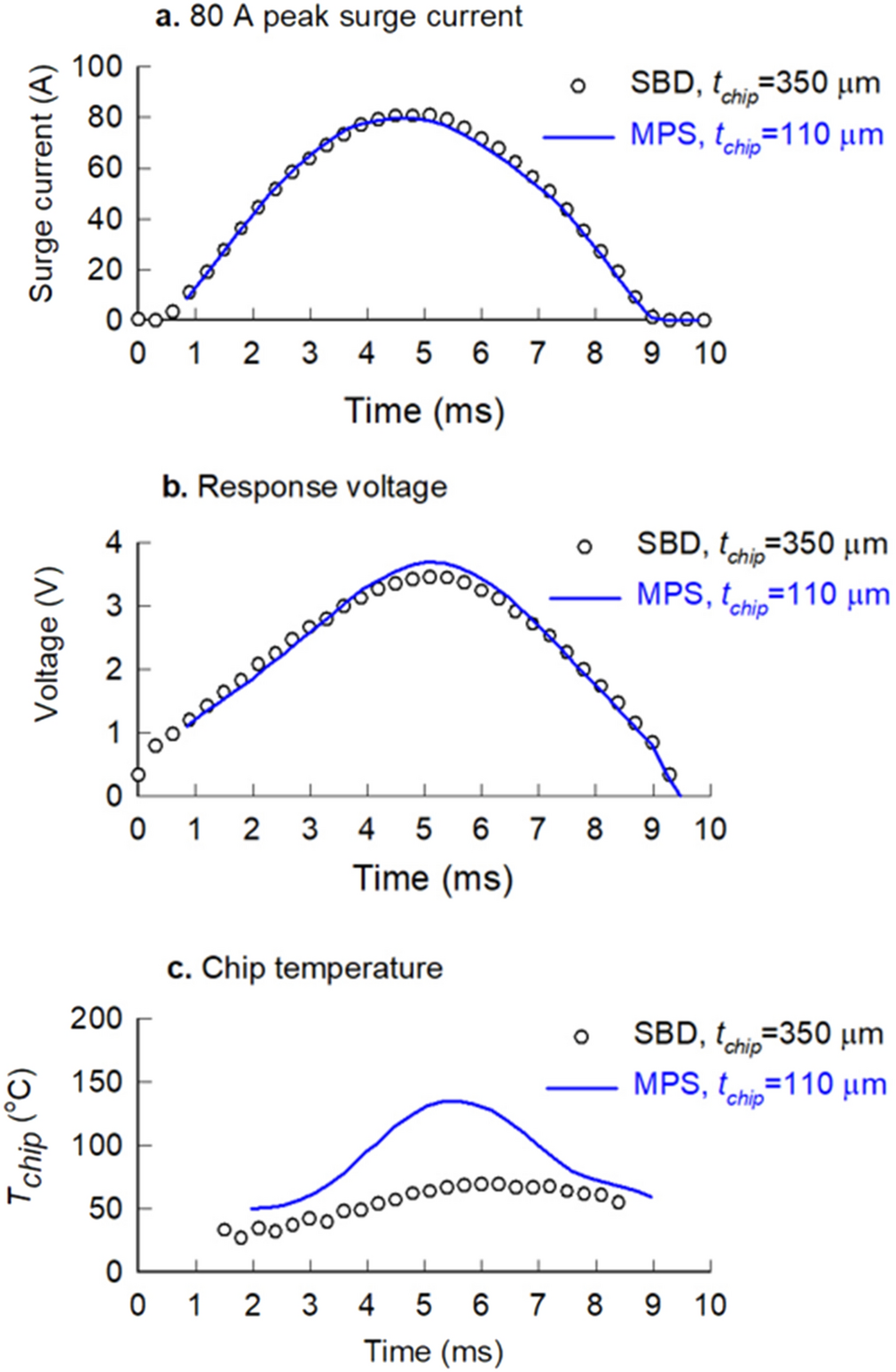

Typical surge-current measurements: (a) a 10-ms half-sinewave with a peak surge current of 80 A, (b) the response voltage, and (c) the chip temperature for Schottky barrier diode with a wafer thickness of 350 μm (symbols) and the merged PN-Schottky diode with a wafer thickness of 110 μm (lines).
