Figure 3
From: Multi-variate model of T cell clonotype competition and homeostasis

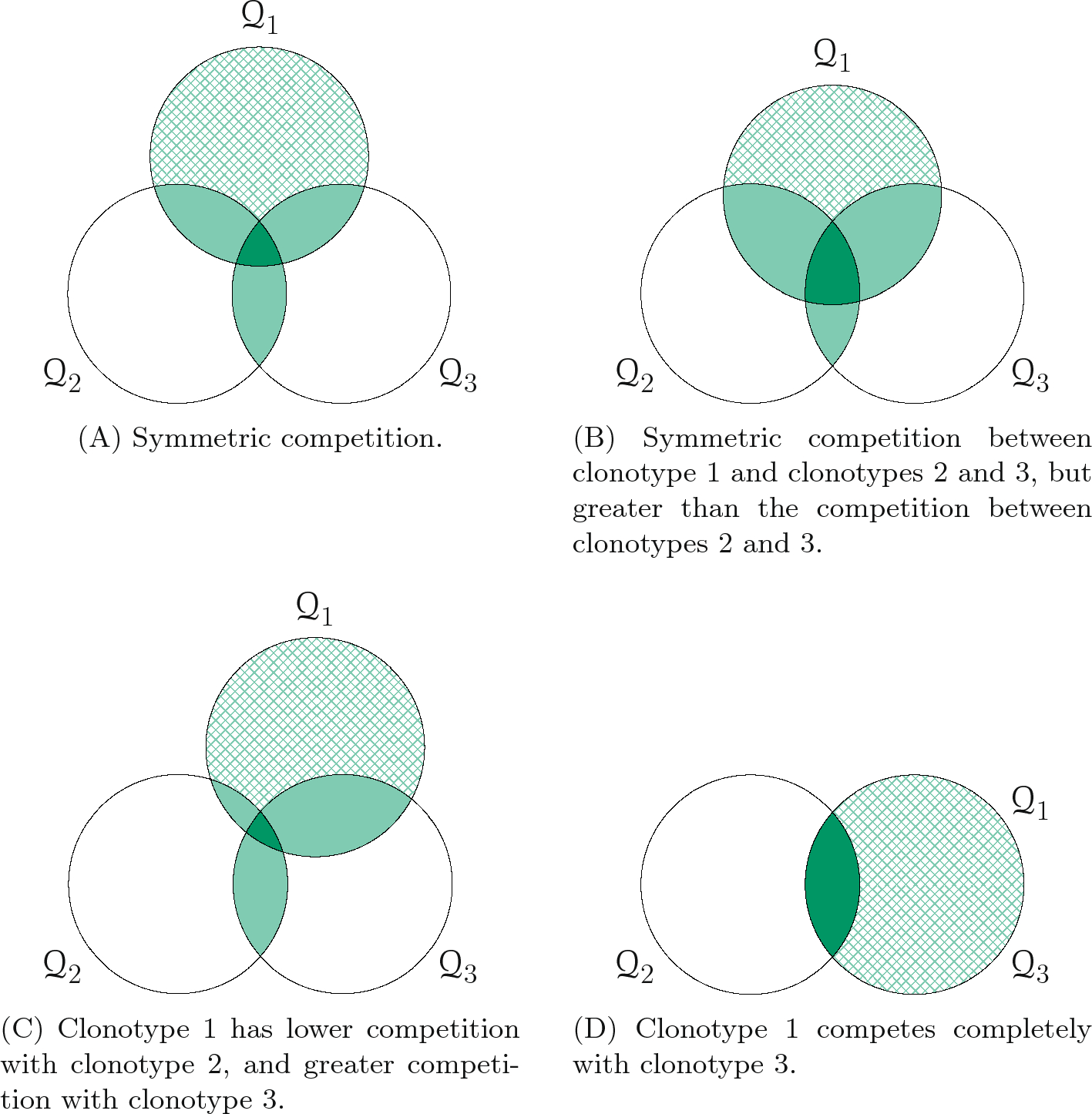

Competition scenarios when a new clonotype is introduced in a two-dimensional clonotype system. Shaded areas represent sets of self-pMHCs that are in the soft niche, with a darker shade meaning a lager value of the mean niche overlap (\(\nu _{ij}^{k}\)). Cross-hatched areas represent regions where we consider both the soft and hard niche cases.
