Figure 7
From: Ab initio structural dynamics of pure and nitrogen-containing amorphous carbon

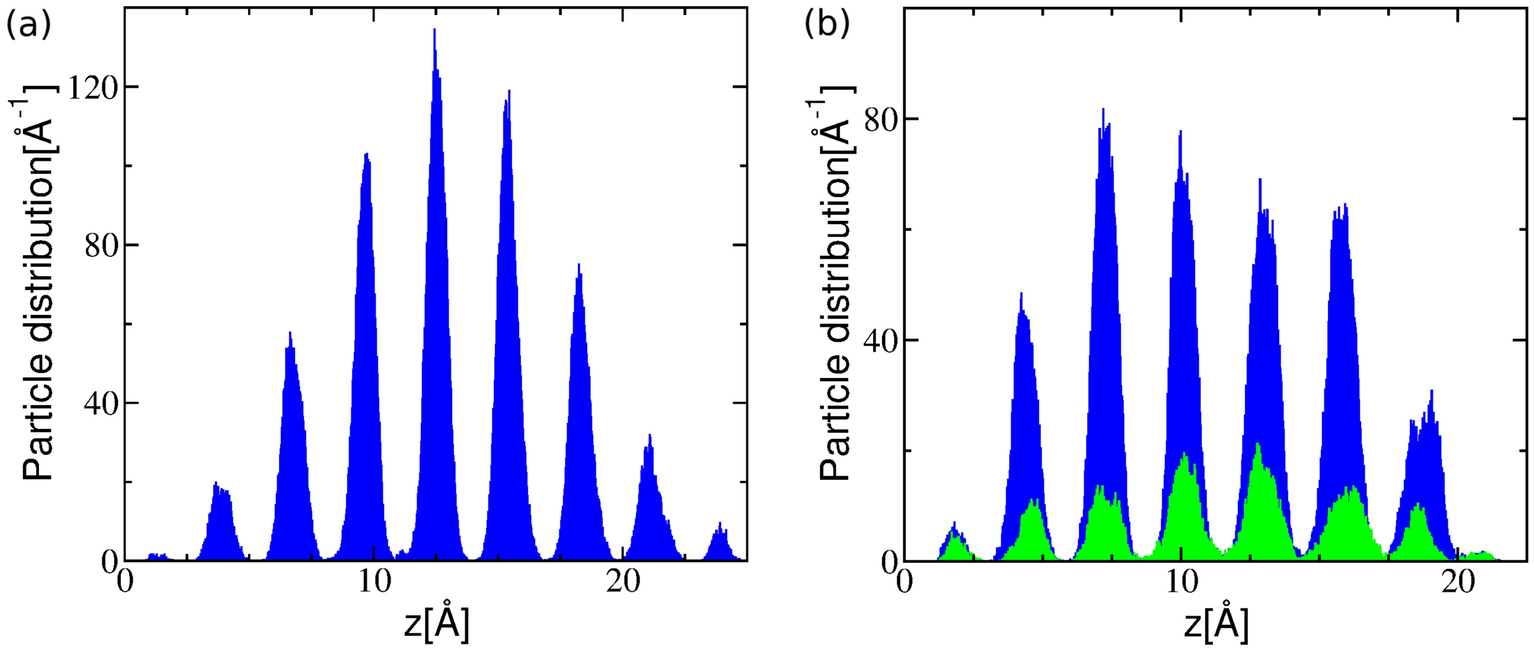

Particle distribution along a direction perpendicular to the layers of (a) a-C at 2.7 g/cc and of (b) a-CN at 2.8 g/cc (carbon atoms - blue, nitrogen atoms - green). Average interlayer distance is 2.88 Å.
