From: Copula-based modeling and simulation of 3D systems of curved fibers by isolating intrinsic fiber properties and external effects

Figure 7

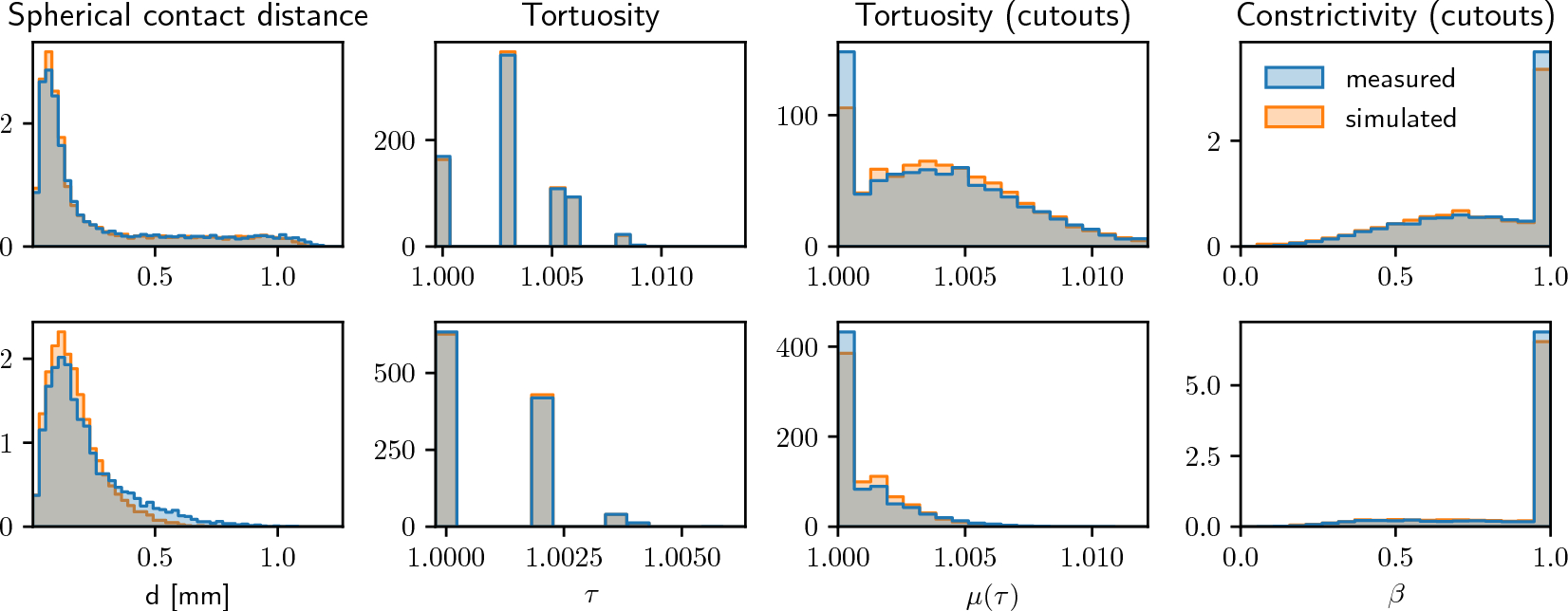

Distribution of geometric descriptors of the pore space morphology, computed from measured image data (blue) and model-based simulations (orange) of Sample 1 (top) and Sample 2 (bottom). Note that as tortuosity is measured on a voxel grid, only finitely many different values of tortuosity can exist which causes the void spaces between the bins in the distributions of tortuosity.
