Figure 2
From: High-throughput analysis system of interaction kinetics for data-driven antibody design

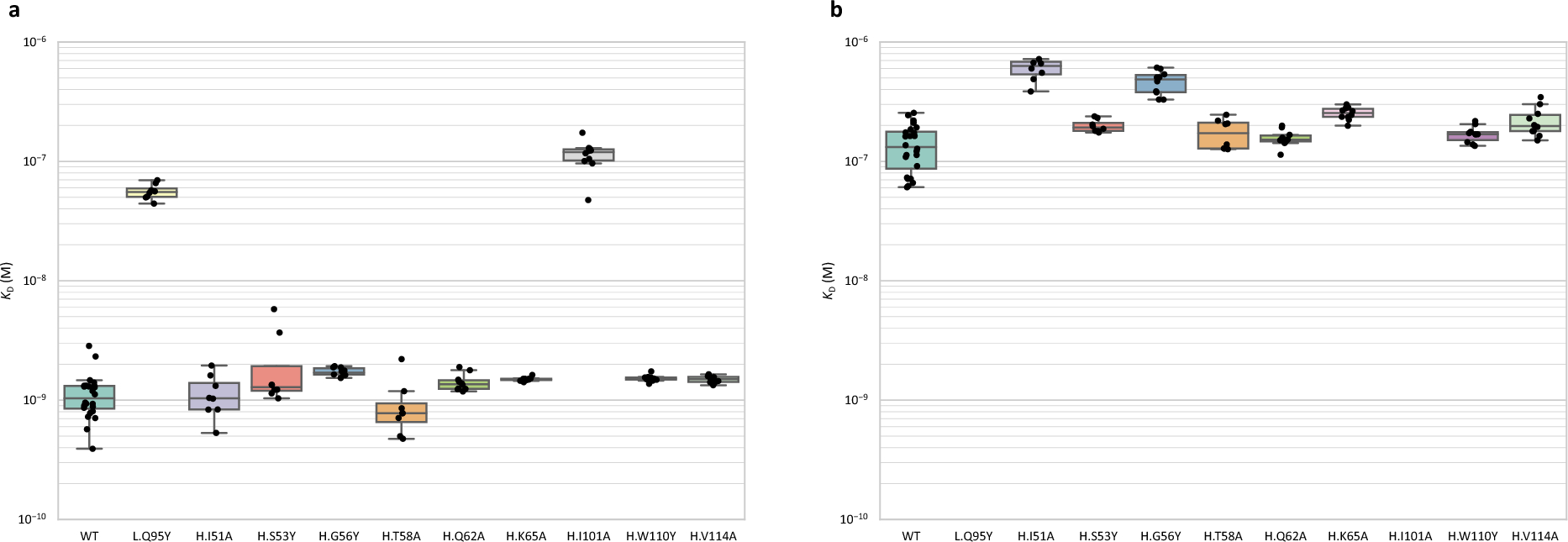

Box plots of KD against hPD-1 (a) and mPD-1-Fc (b). KDs against mPD-1Fc of L.Q64Y and H.101A are not determined for all the data points due to low affinity.
