Figure 4

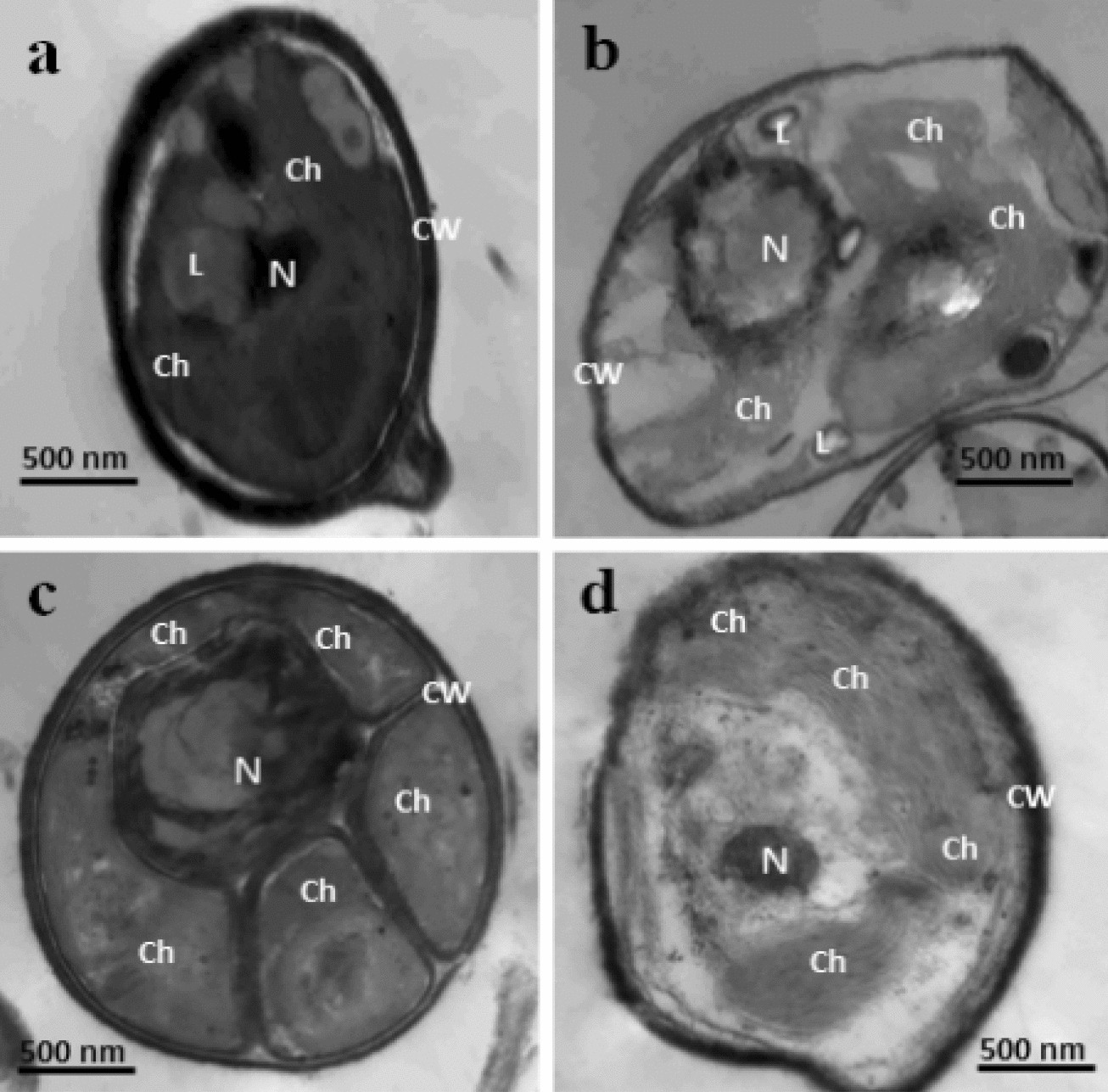

Cell ultrastructure of Chlorella sorokiniana grown in BG11 medium supplemented with nanoparticles (NPs); (a) Control medium, (b) Hydroxyapatite NPs, (c) Magnesium oxide NPs, and (d) Zinc oxide NPs. Ch, chloroplast; L, lipid droplets; N, nucleus; CW, cell wall.
