Figure 6 | Scientific Reports

Figure 6

From: Identification of a bile acid and bile salt metabolism-related lncRNA signature for predicting prognosis and treatment response in hepatocellular carcinoma

Figure 6

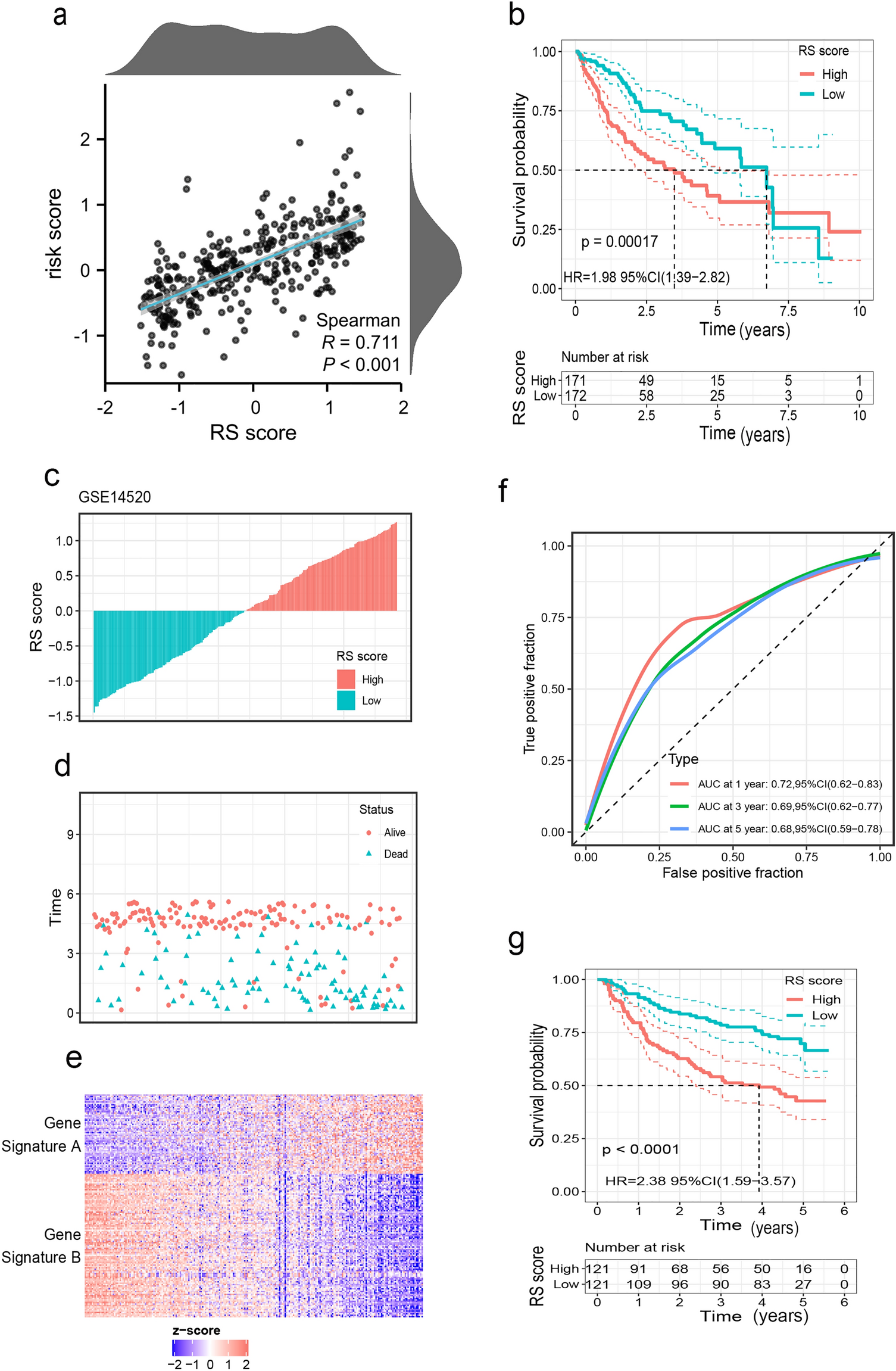

Construction of the RS score and validation in the external data set GSE14520. (a) Spearman correlation analysis between RS score and risk score. (b) The Kaplan–Meier curve shows the OS of patients with different RS scores in the TCGA-LIHC database. (c) Distribution plots for the relationship between RS score and survival status (d) Scatter plots displaying the survival status of each patient with HCC (e) Heat maps for the gene signature A/B in the cohort (f) ROC curve for the RS score in the external cohort (g) Survival curves between high-and low-RS score groups in GSE14520.
