From: Identification of a bile acid and bile salt metabolism-related lncRNA signature for predicting prognosis and treatment response in hepatocellular carcinoma

Figure 9

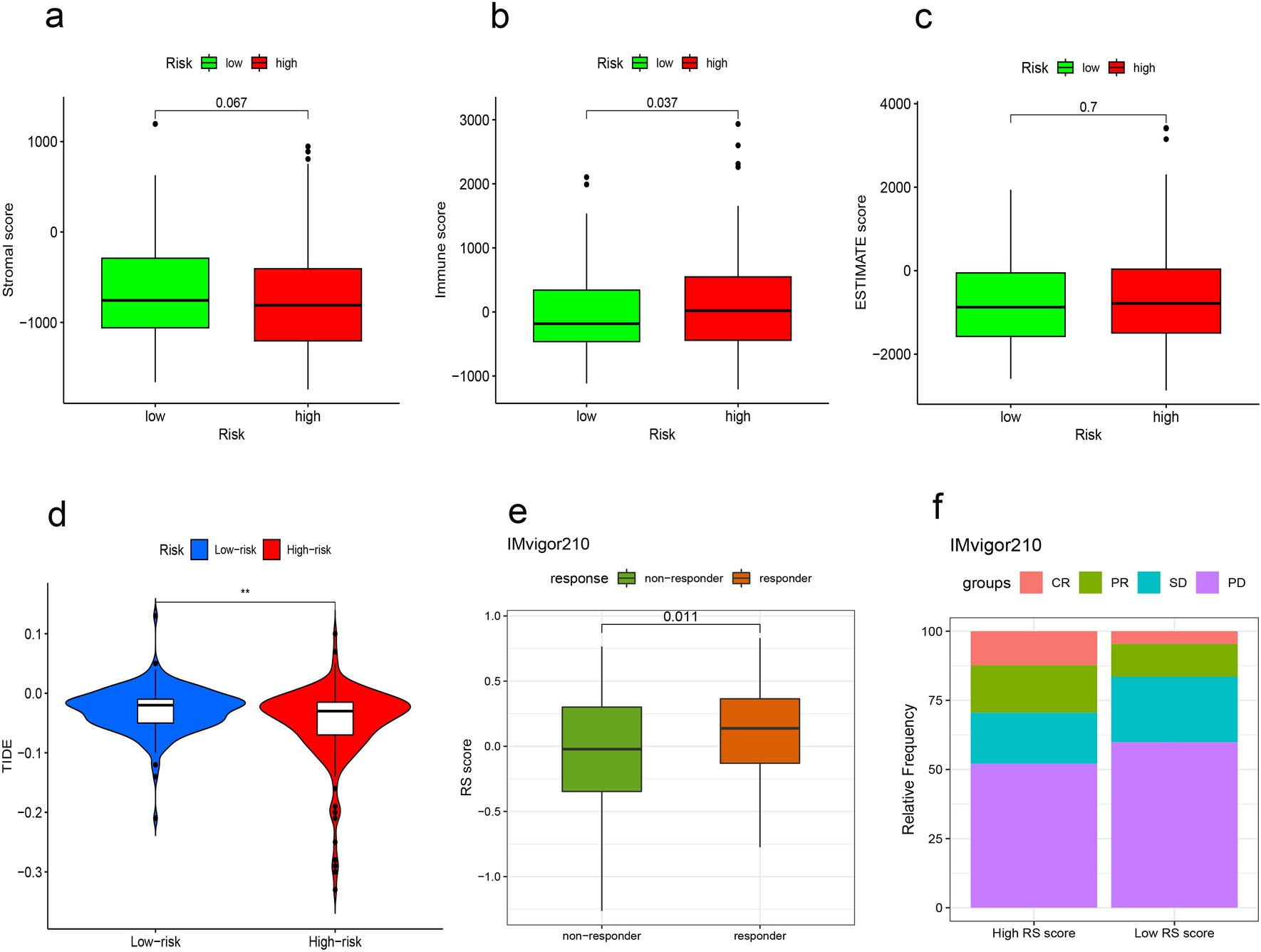

Differences in immune infiltration and immune therapy response between high- and low-risk groups. (a) Comparison of the Stromal scores between low- and high-risk group using the ESTIMATE algorithm. (b) Comparison of the Immune scores between low- and high-risk group. (c) Comparison of the Estimate scores between low- and high-risk group. (d) Comparison of the TIDE scores between low- and high-risk group. (e) Boxplot demonstrating the RS score difference between the response group and the non-response group in IMvigor210 dataset. (f) Bar plot displaying the relative frequency of different clinical response subgroups in the low or high RS score group in IMvigor210 dataset.
