Figure 4
From: Development of an advanced velocity modulator for a portable Mössbauer spectrometer

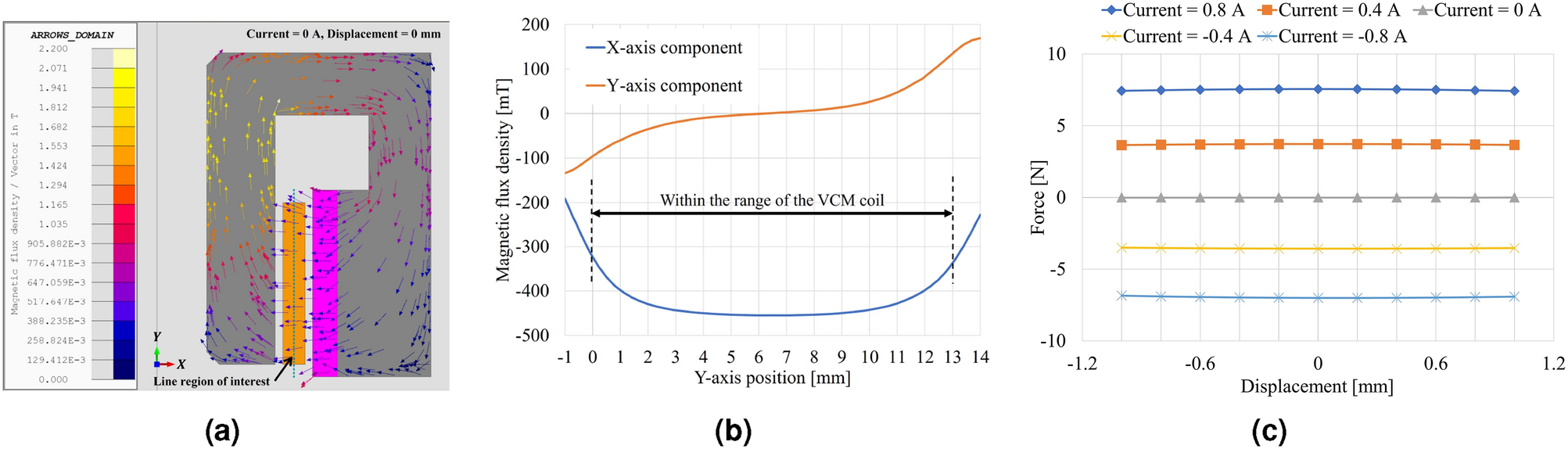

Results of EM analysis of the VCM. (a) Magnetic flux density distribution. (b) Magnetic flux density in the line region of interest (middle of the air gap). (c) Force–displacement property.
