Figure 7
From: Disturbance rejection model predictive control of lower limb rehabilitation exoskeleton

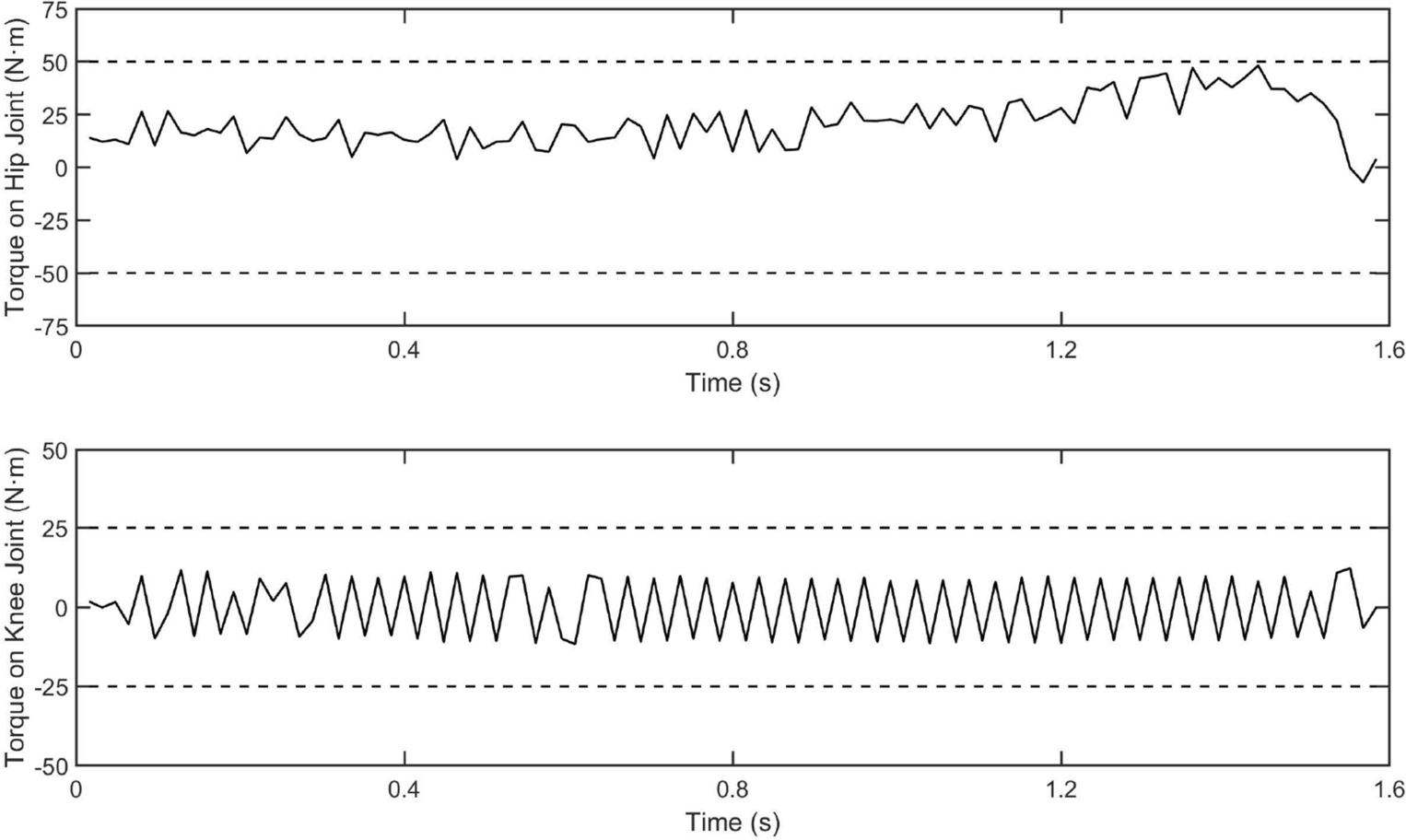

The control inputs of our control scheme. The upper sub-figure is the control torque on hip joint and the lower sub-figure is the control torque on knee joint.
