Figure 5 | Scientific Reports

Figure 5

From: LARCalc, a tool to estimate sex- and age-specific lifetime attributable risk in populations after nuclear power plant fallout

Figure 5

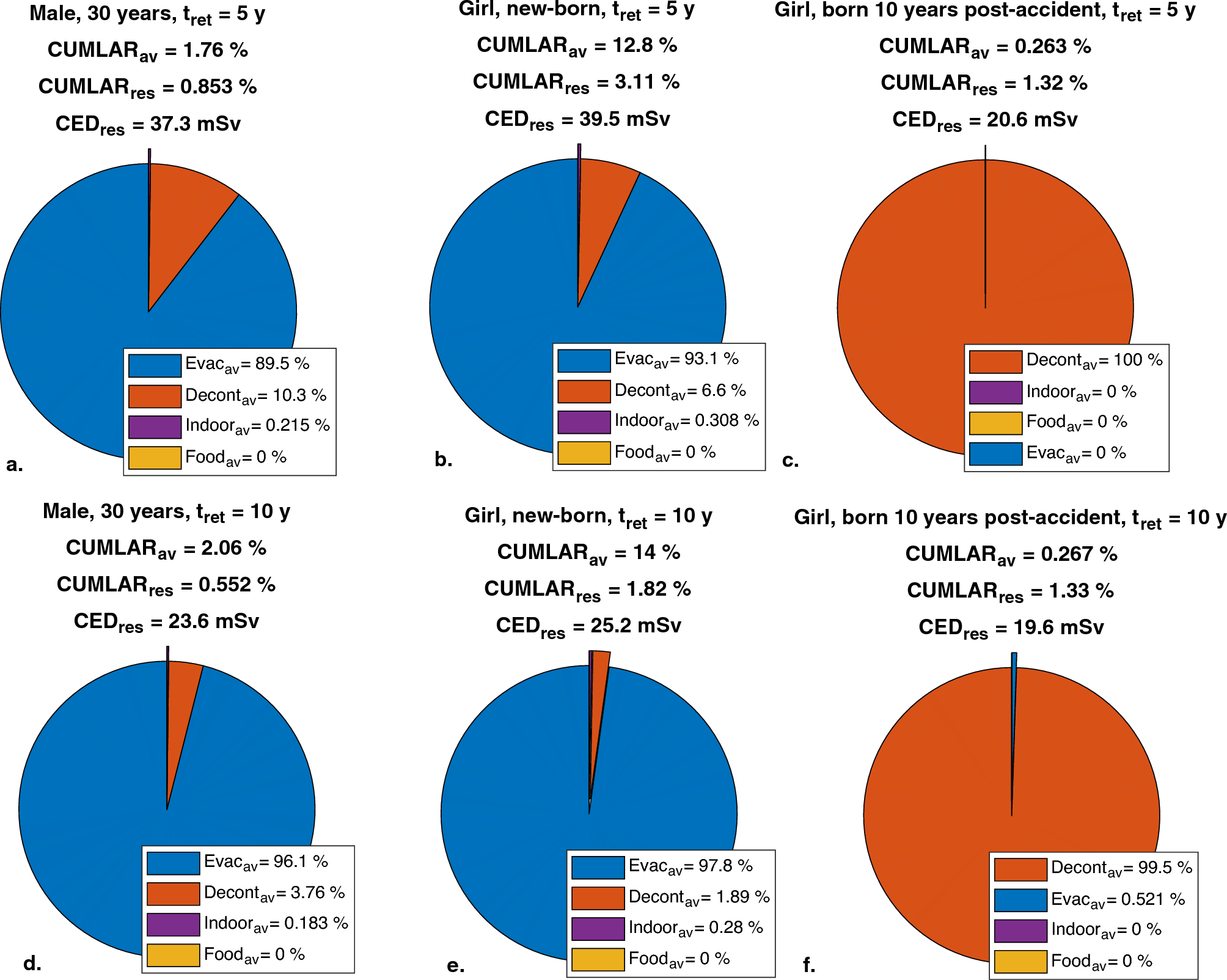

Pie charts showing the CUMLARav for two different evacuation times, for an adult male, a newborn female and female born 10 years after the accident. The fallout scenario was Swedish NPP (Table 2), with Teco,Cs,long = 6.7 y, assuming 3 days’ sheltering, decontamination with 50% efficiency performed after evacuation. Note that Evacav, Decontav, Indoorav and Foodav are given as percent of the total averted risk, and that averted risk, CUMLARav, are given as percental points.
