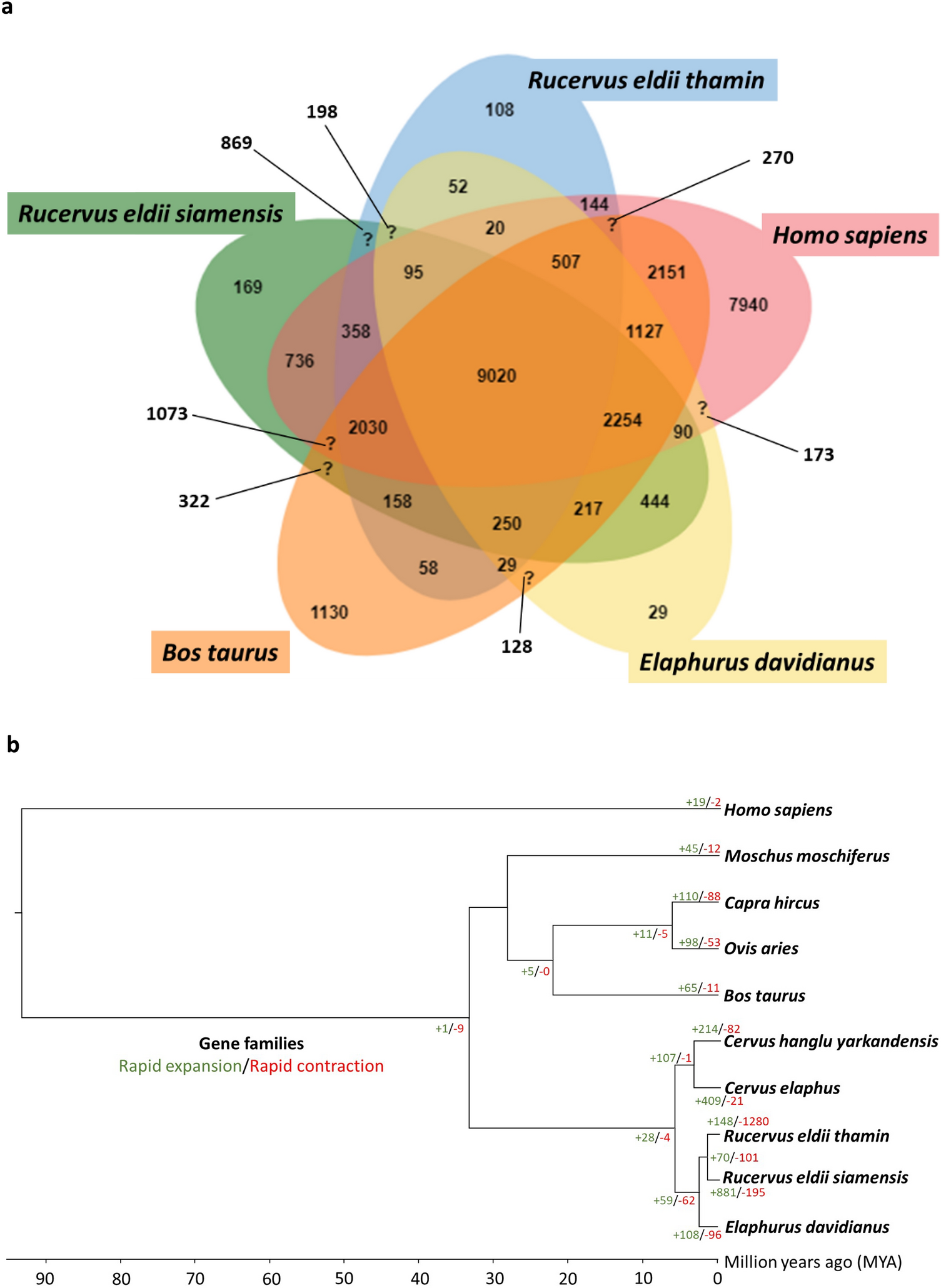

Comparative genomic analysis of Rucervus eldii siamensis (SED), Rucervus eldii thamin (BED) and three other mammalian species. (a) Venn diagram of the gene clusters shared among SED, BED, Elaphurus davidianus (Père David’s deer), Bos taurus (cattle) and Homo sapiens (human) using OrthoVenn2, (b) Phylogenetic tree showing divergence times and the evolution of gene family sizes of SED, BED and the genomes of eight other species. The tree was constructed based on single-copy orthologs to show divergence times, computed by MCMCTree in the PAML v4.9j package. Homo sapiens was included as an outgroup. The numbers of expanded (green) and contracted (red) gene families are shown at the nodes in the phylogenetic tree and were determined using CAFE v4.2.1.
