Figure 8
From: Plasticity-led evolution as an intrinsic property of developmental gene regulatory networks

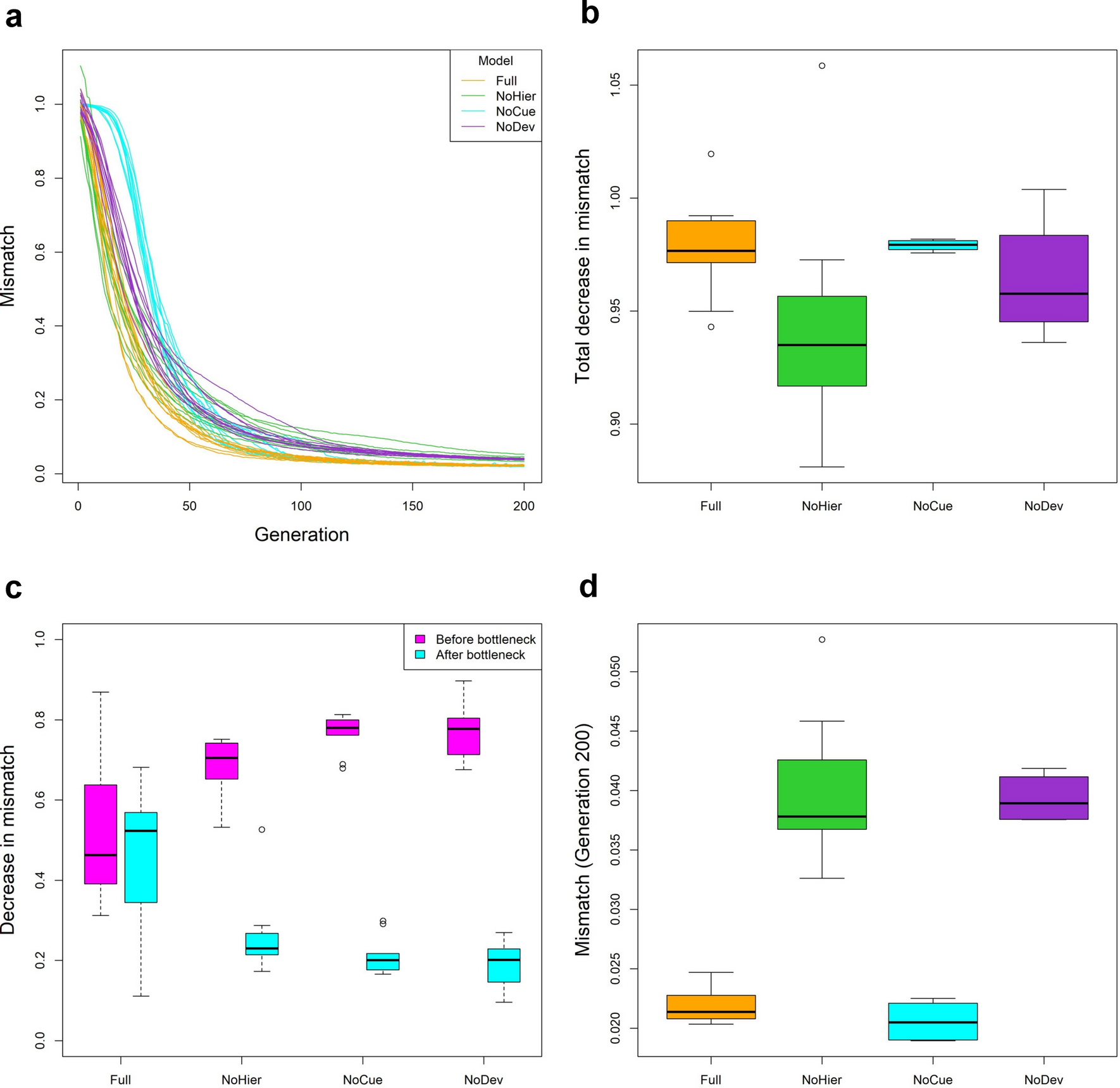

Adaptive refinement. (a) Trajectory of mismatch between phenotype expressed in a novel environment and selective environment over evolution. (b) Boxplot of the total decrease in a mismatch from Generation 1 up to Generation 200. (c) Boxplots of decrease in the mismatch before and after the genetic bottleneck. (d) Boxplot of the mismatch at generation 200.
