Figure 2

From: Identification and characterization of Glycolate oxidase gene family in garden lettuce (Lactuca sativa cv. ‘Salinas’) and its response under various biotic, abiotic, and developmental stresses

Figure 2

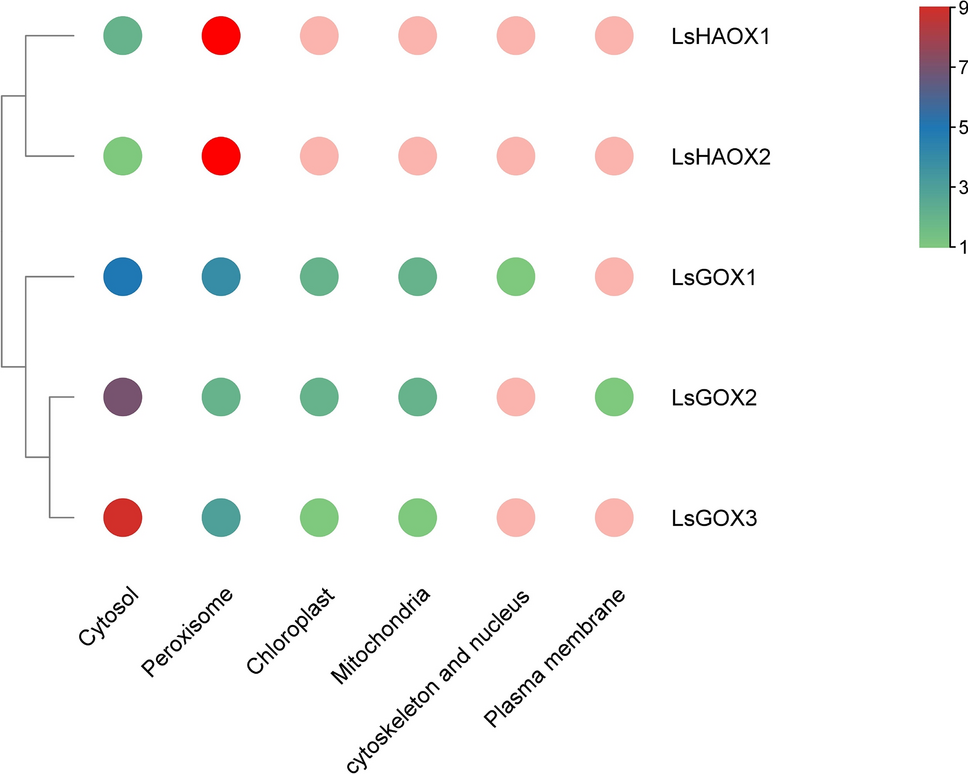

Heat map showing predicted subcellular localization of LsGLO proteins. Green indicates the lowest and red indicates the highest number of signals in LsGLOs displayed with hierarchy. ‘Cyto’, ‘Pero’, ‘Chlo’, ‘Mito’, ‘Plas’, and ‘Cysk_nucl’ represent cytosol, peroxisomes, chloroplast, mitochondria, plasma membrane, and cytoskeleton and nucleus.
