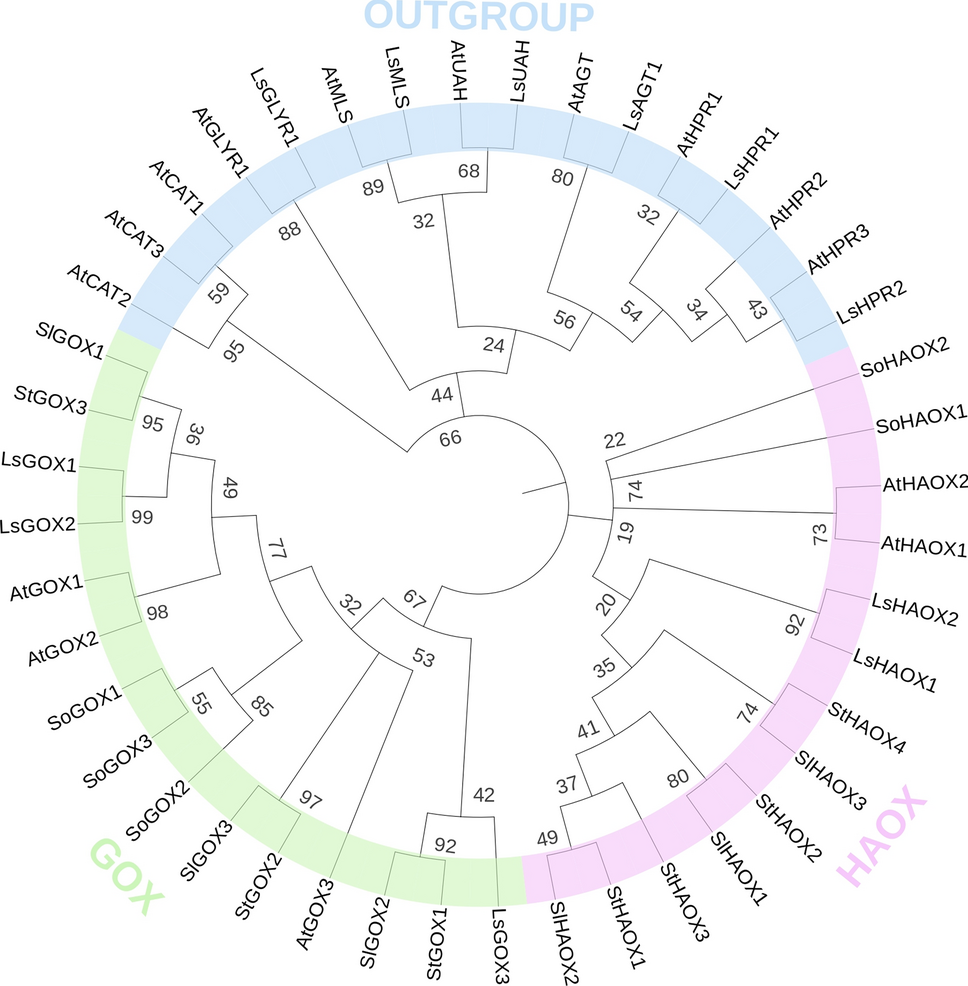

Phylogenetic relationships of LsGLO genes with other plant species( MEGA X v10.2.4). Using the UPGMA method to infer the evolutionary history with 1000 Bootstrap, and phylogenetic tree was constructed using an online tool, iTol v6 (Interactive Tree Of Life) (https://itol.embl.de). ‘At’, ‘So’, ‘Sl’, and ‘St’ represent Arabidopsis, S. oleracea, S. lycopersicum, and S. tuberosum genes, respectively. HPR, AGT, UAH, GLYR, MLS, and CAT were used as outgroups and represent hydroxypyruvate reductase, glyoxylate aminotransferase, ureidoglycolate amidohydrolase, glyoxylate reductase, malate synthase, and catalase, respectively. Different numbers indicate the bootstrap values on each node.
