From: KTt-45, a T-type calcium channel blocker, acts as an anticancer agent by inducing apoptosis on HeLa cervical cancer cell line

Figure 6

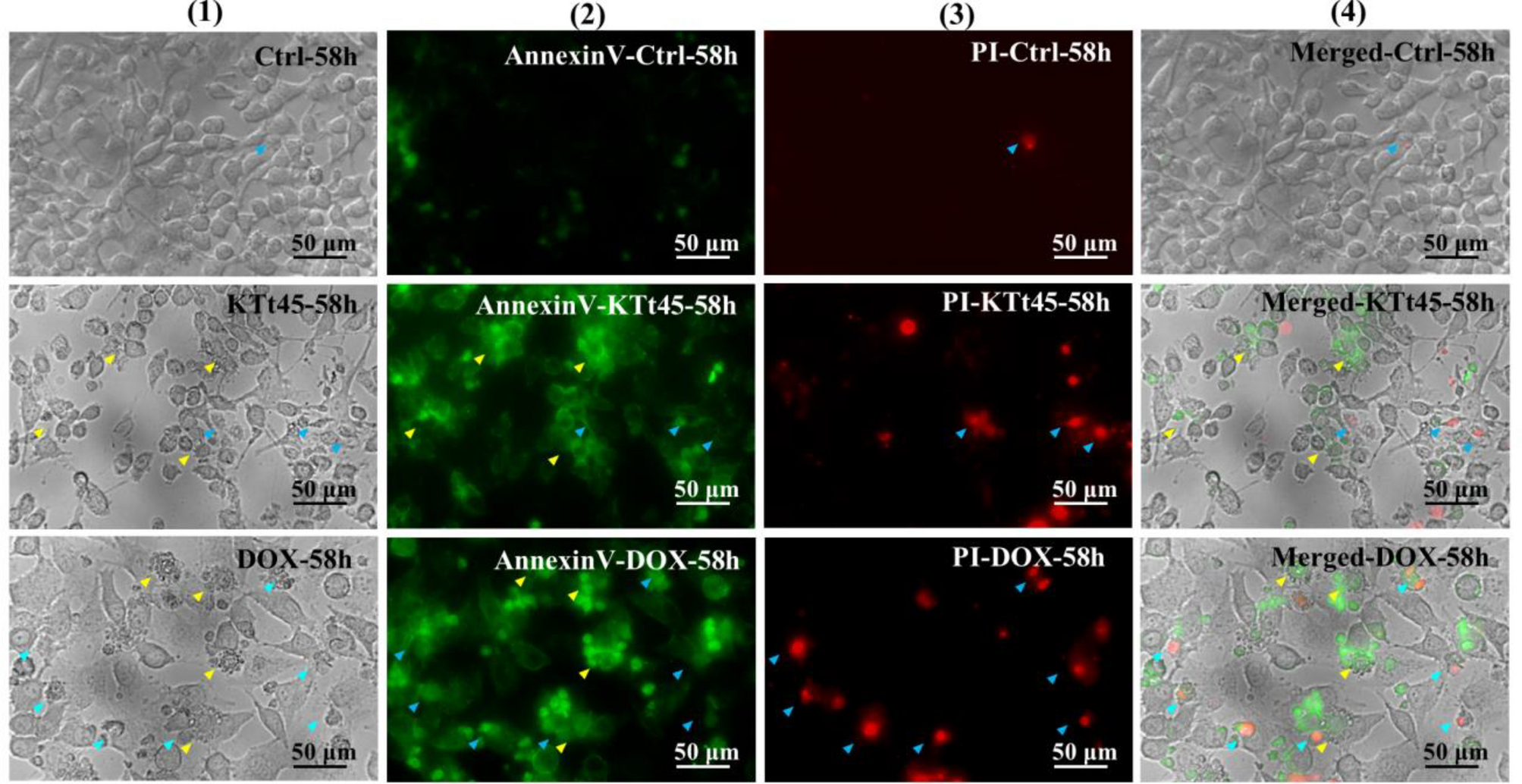

The analysis of annexin-V-FITC/PI in HeLa cells induced by KTt-45. The annexin-V and PI signals of KTt-45-treated cells (37.4 μM) compared with doxorubicin-treated (3 μM) and control untreated cells (0.1% (v/v) DMSO) at 58 h. Columns (1), (2), (3), and (4) display images of cells (bright field), annexin-V-FITC signals (green field), PI signals (red field), and merging (bright, green, and red field), respectively. The yellow arrows point early apoptotic cells. The blue arrows point late apoptotic/necrotic cells. The scale bars indicate 50 μm.
