Figure 27

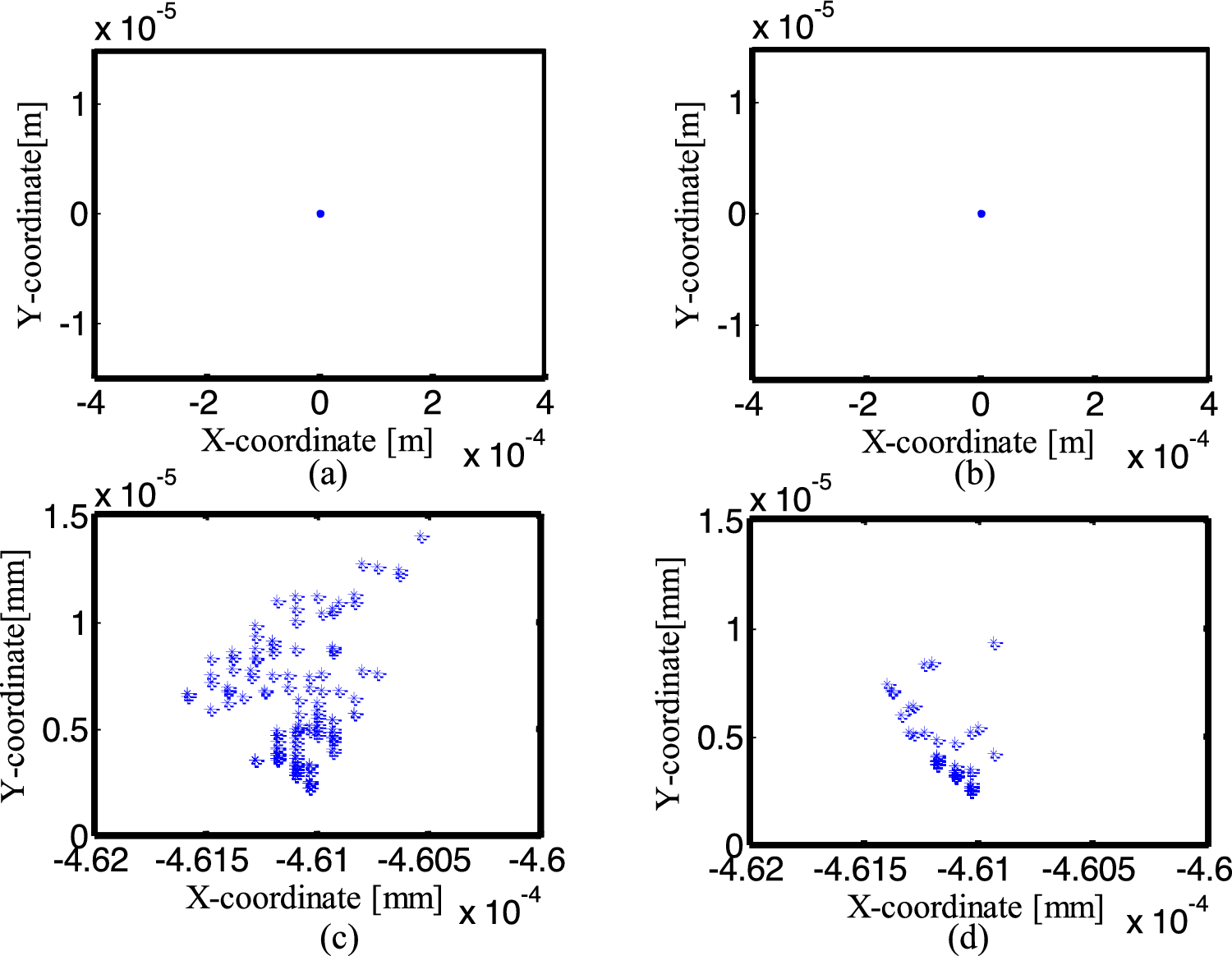

Poincaré maps of center trajectory at joint B for different number of clearance joint: (a) an ideal mechanism; (b) one clearance translational joint mechanism; (c) two revolute joints mechanism; (d) three clearance joints mechanism.
