Figure 32

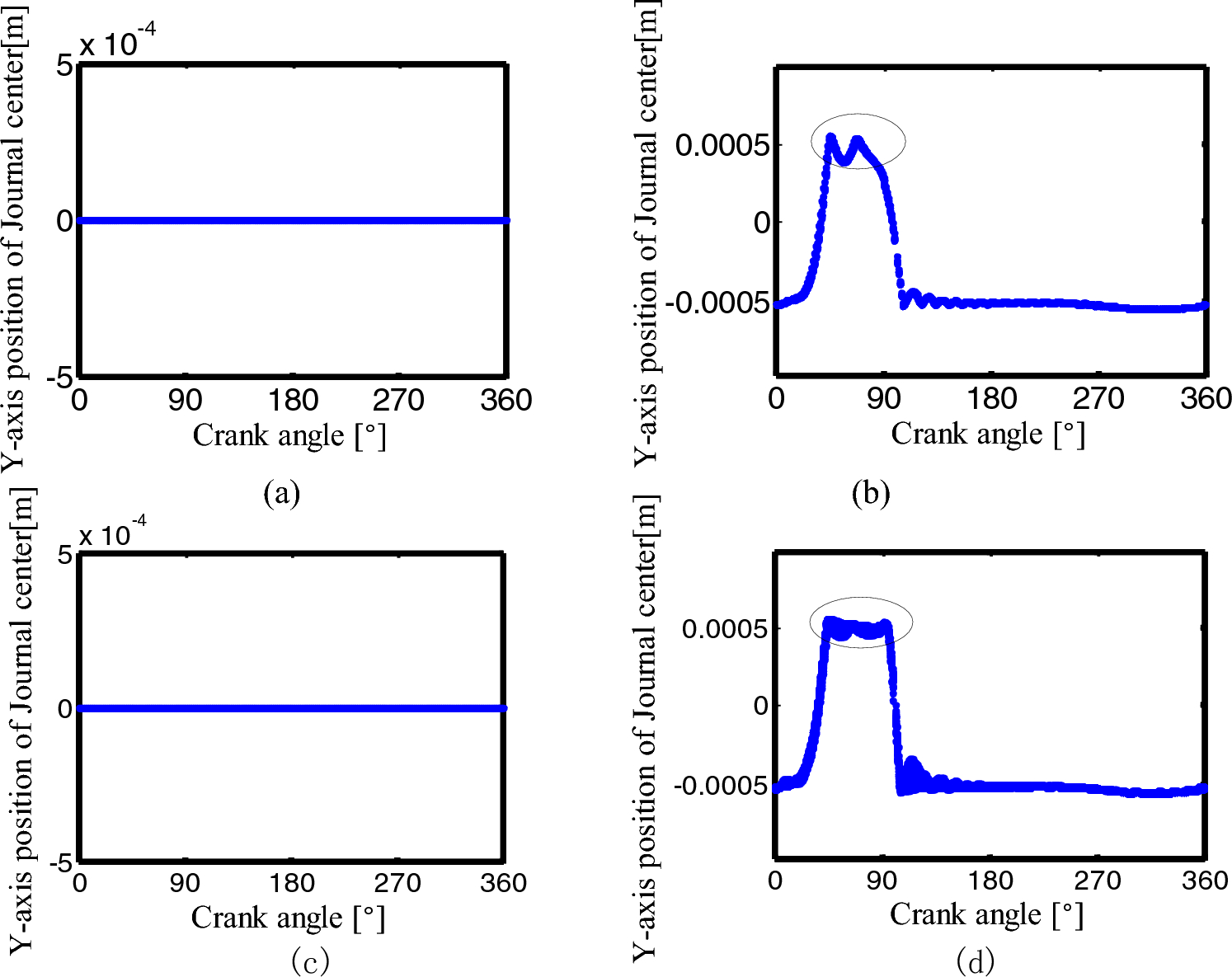

The center trajectory of the joint D in y-direction for different number of clearance joint: (a) an ideal mechanism; (b) one clearance translational joint mechanism; (c) two revolute joints mechanism; (d) three clearance joints mechanism.
