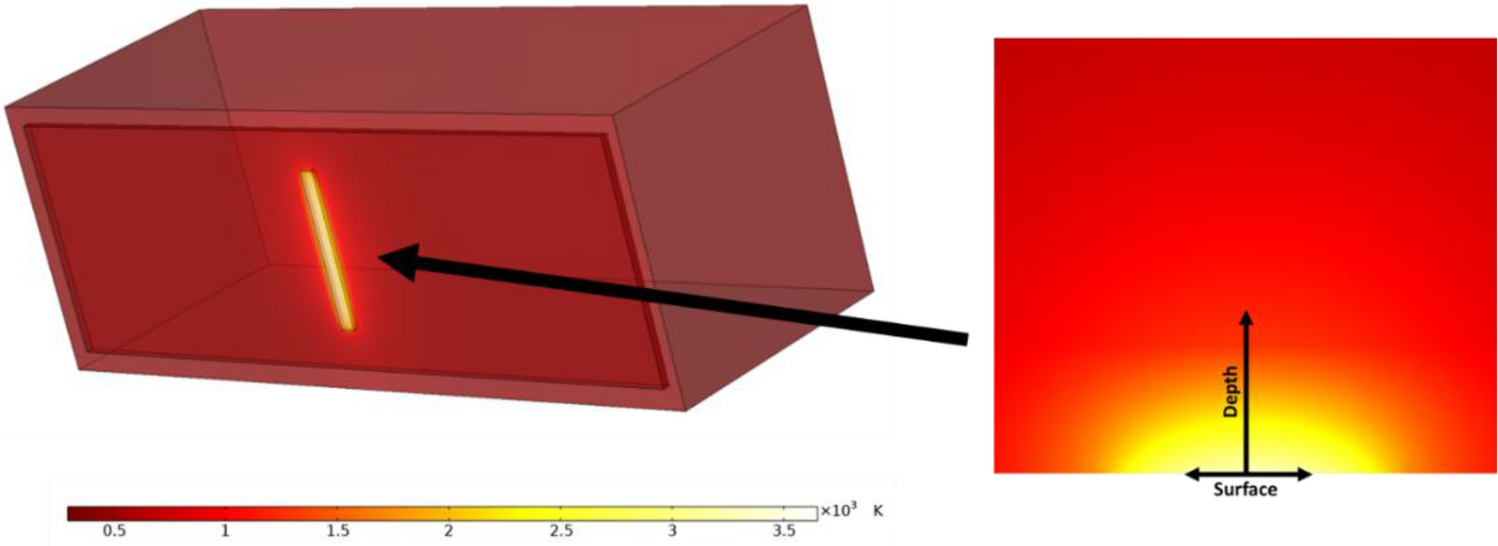

Figure 6
Temperature distribution of a 2 × 20 mm2 focal spot on the anode heated by a 160 keV 100 mA DC electron beam in FEA thermal analysis. The temperature distribution at the focal spot is shown in a cross-sectional view.
