Figure 1

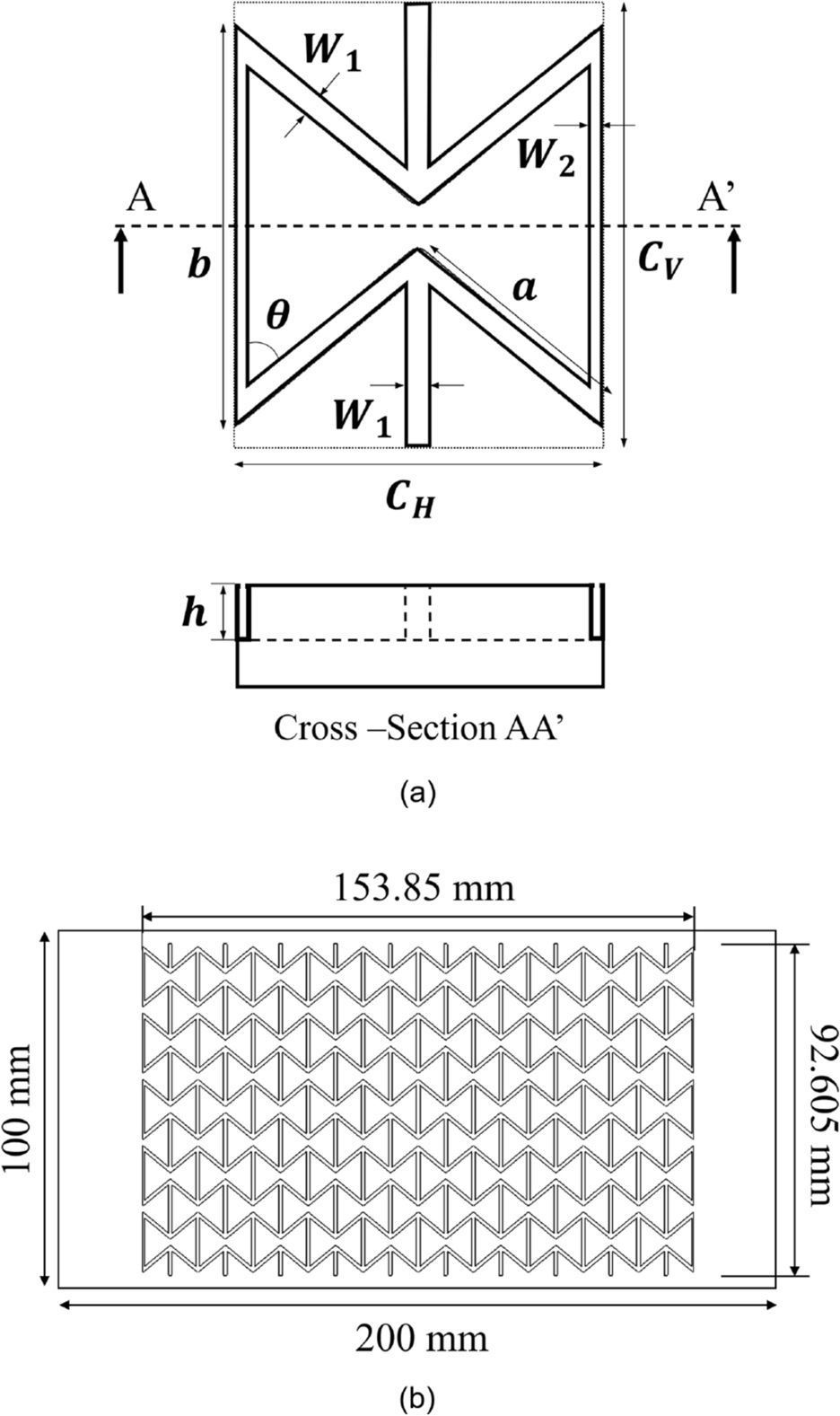

A schematic diagram of (a) the unit cell of the re-entrant honeycomb structure type I and a cross-sectional image of the machined metal mold and (b) machining of negative patterned re-entrant honeycomb structure on a brass metal mold using precise micro end-milling.
