Figure 9
From: Glass/steel/clay interactions in a simulated radioactive waste geological disposal system

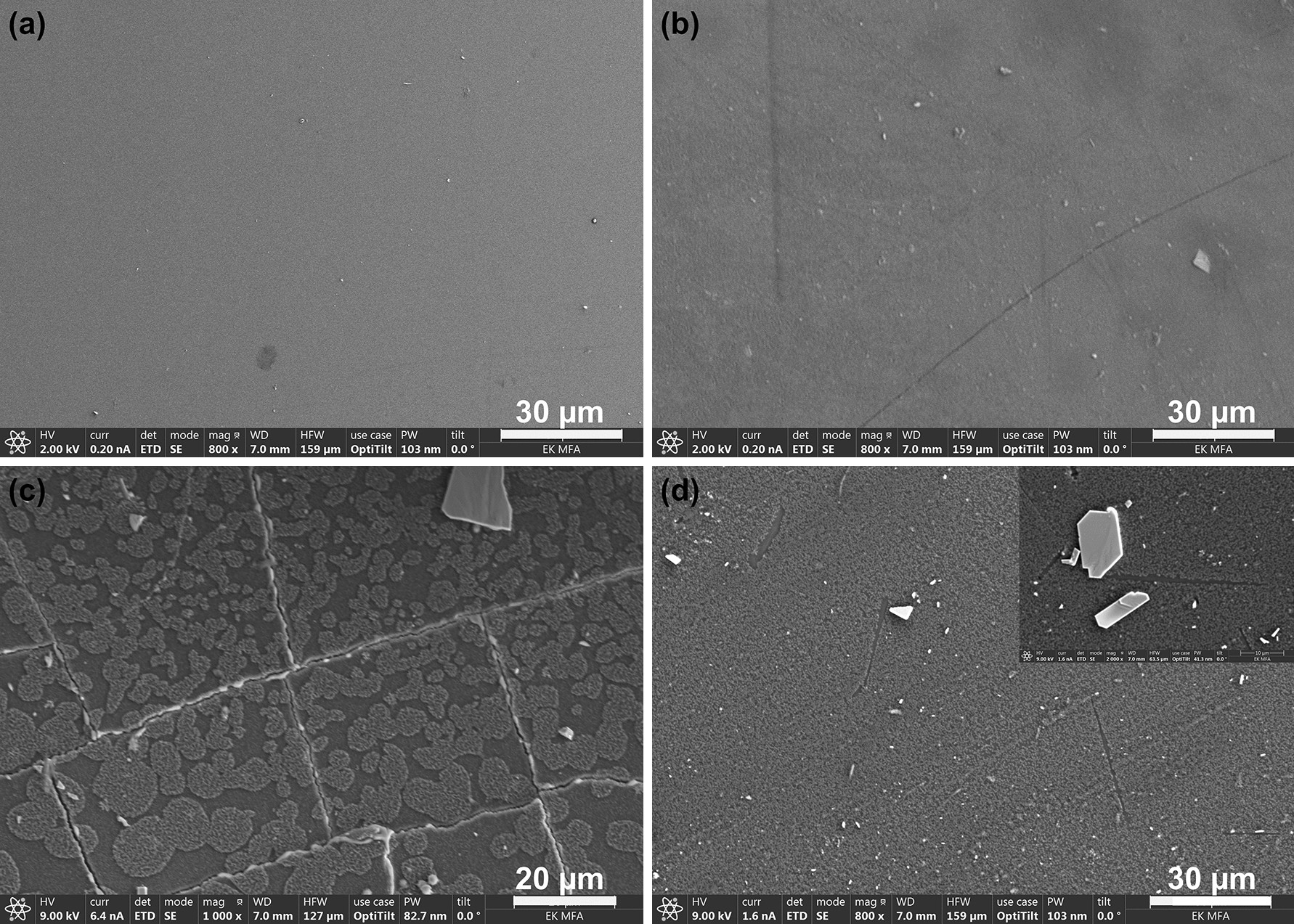

(a, b, c, d) Backscattered electron images at 800 × magnification on the surface of G-Ref (a), G-1 M (b), G-2 M (c) and G-3 M (d) samples.
