Figure 1 | Scientific Reports

Figure 1

From: Hypobaric hypoxia induces iron mobilization from liver and spleen and increases serum iron via activation of ghrelin/GHSR1a/MAPK signalling pathway in mice

Figure 1

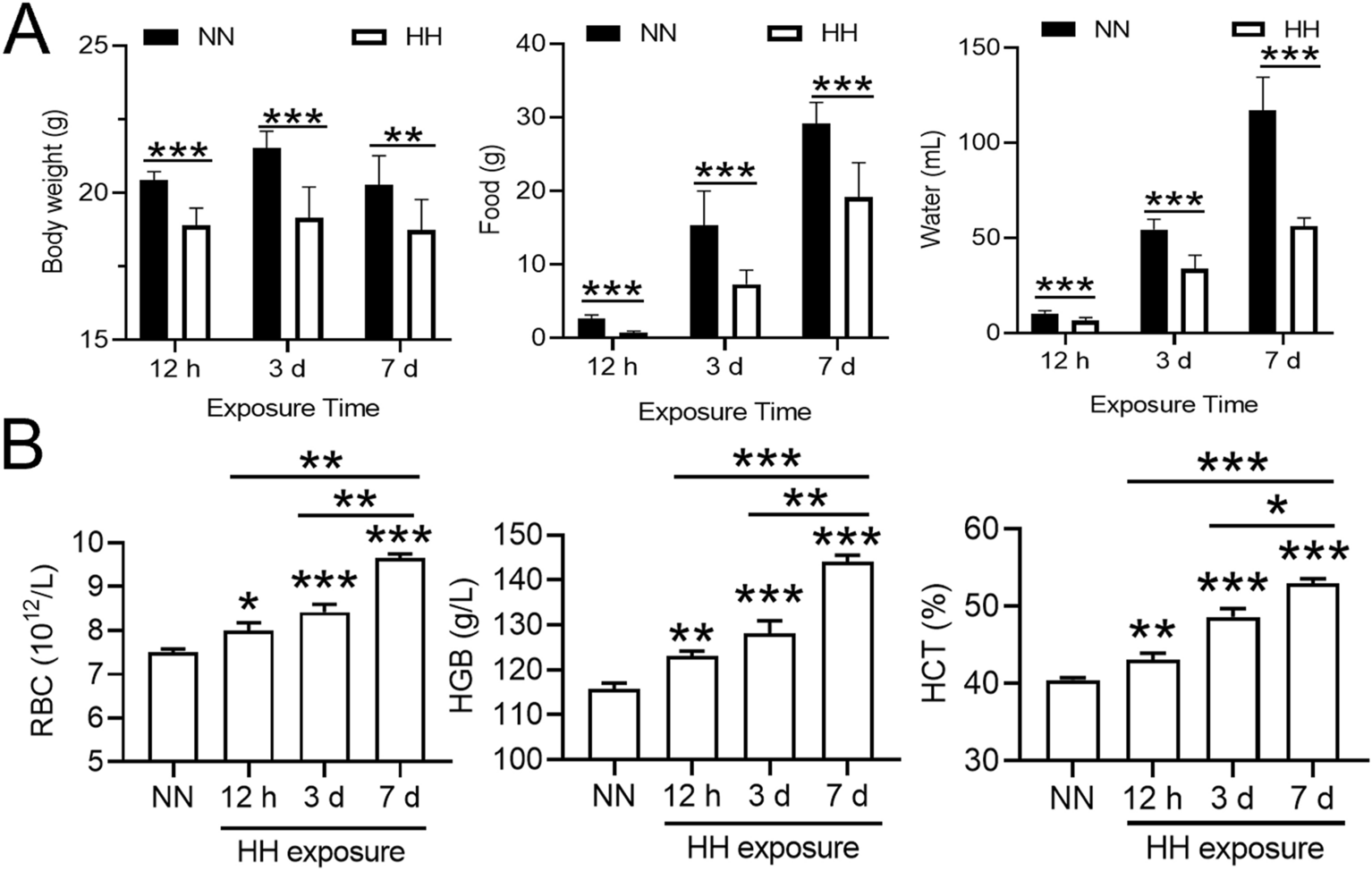

HH exposure reduced mouse body weight and food and water intake and increased RBC, HGB and HCT in the blood of mice. (A) Changes in body weight and total (cumulative) food and water intake of mice after 12 h, 3 d and 7 days of HH exposure. (B) Changes in RBC, HGB and HCT in the blood of mice after HH exposure for 12 h, 3 and 7 days. Values are displayed as the mean ± SEM (n = 9 mice), * P < 0.05, ** P < 0.01, *** P < 0.001 versus the NN group or the indicated group.
