Figure 3
From: Cellular dynamics as a marker of normal-to-cancer transition in human cells

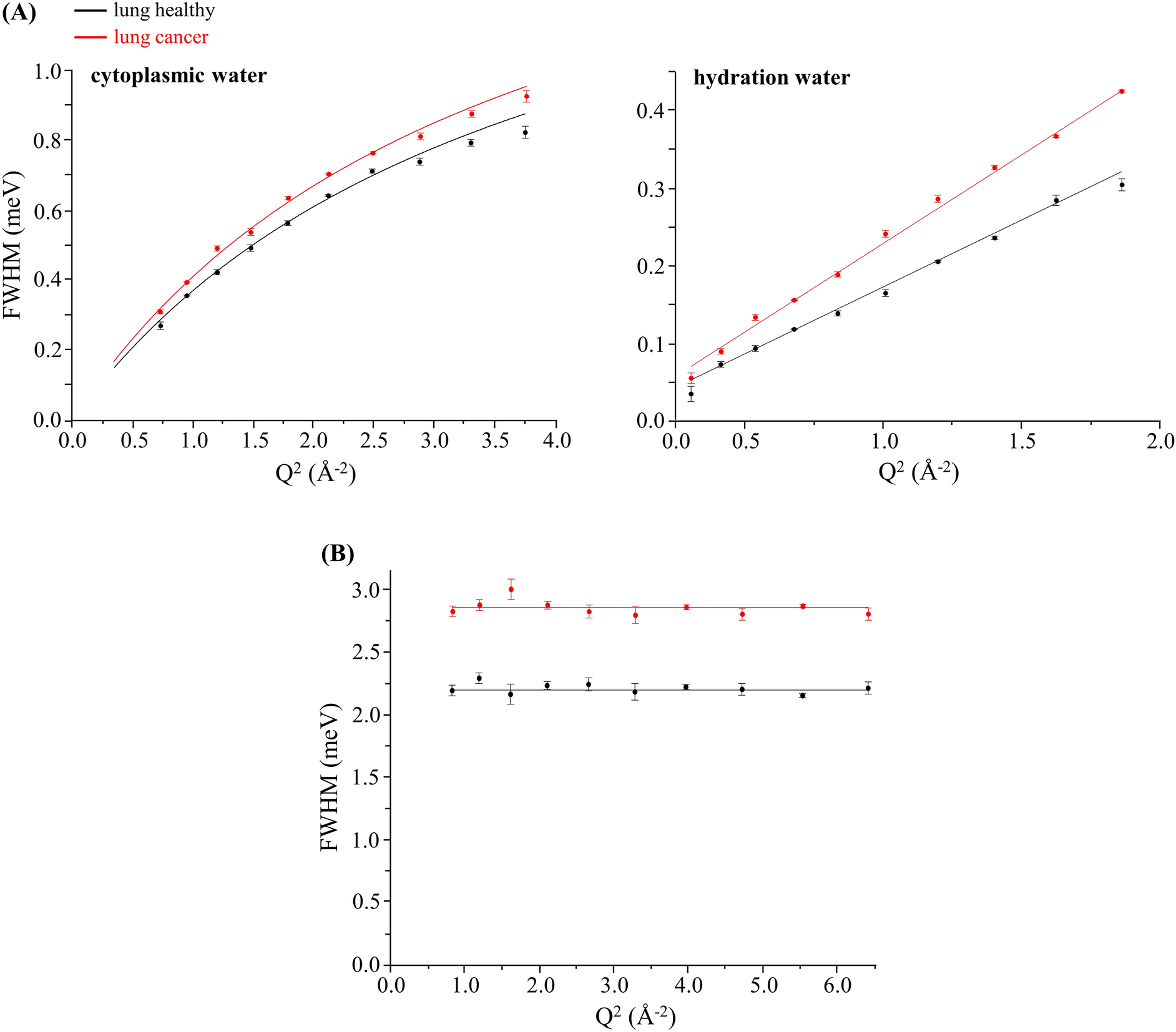

Variation of the full widths at half-maximum (FWHM) with Q2 for human lung cancer and lung healthy cells (at 310 K): (A) Lorentzian functions representing the translational motions of intracellular water—cytoplasmic medium and hydration layers (Γglobal) (data measured at 2.97 and 1.70 meV incident neutron energies, respectively); (B) Lorentzian function representing the internal localised motions within the cell (Γlocal) (data measured at a 6.42 meV incident neutron energy).
