Figure 2

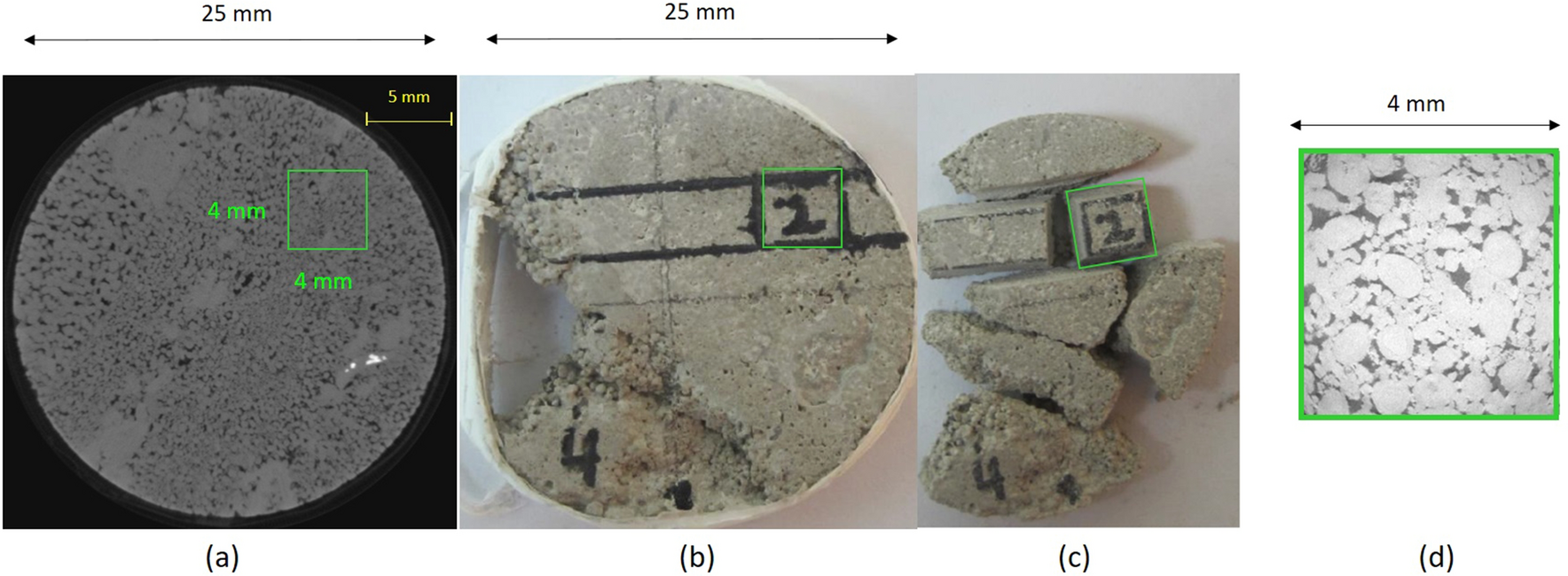

Subset selection and image acquisition at high resolution for Sample S₁: (a) Location of 4 mm³ extracted subset on 3D X-Ray MCT at 20 μm resolution, (b) subset location on real core plug, (c) Subset extraction, and (d) Subset scanned at 4 μm resolution.
