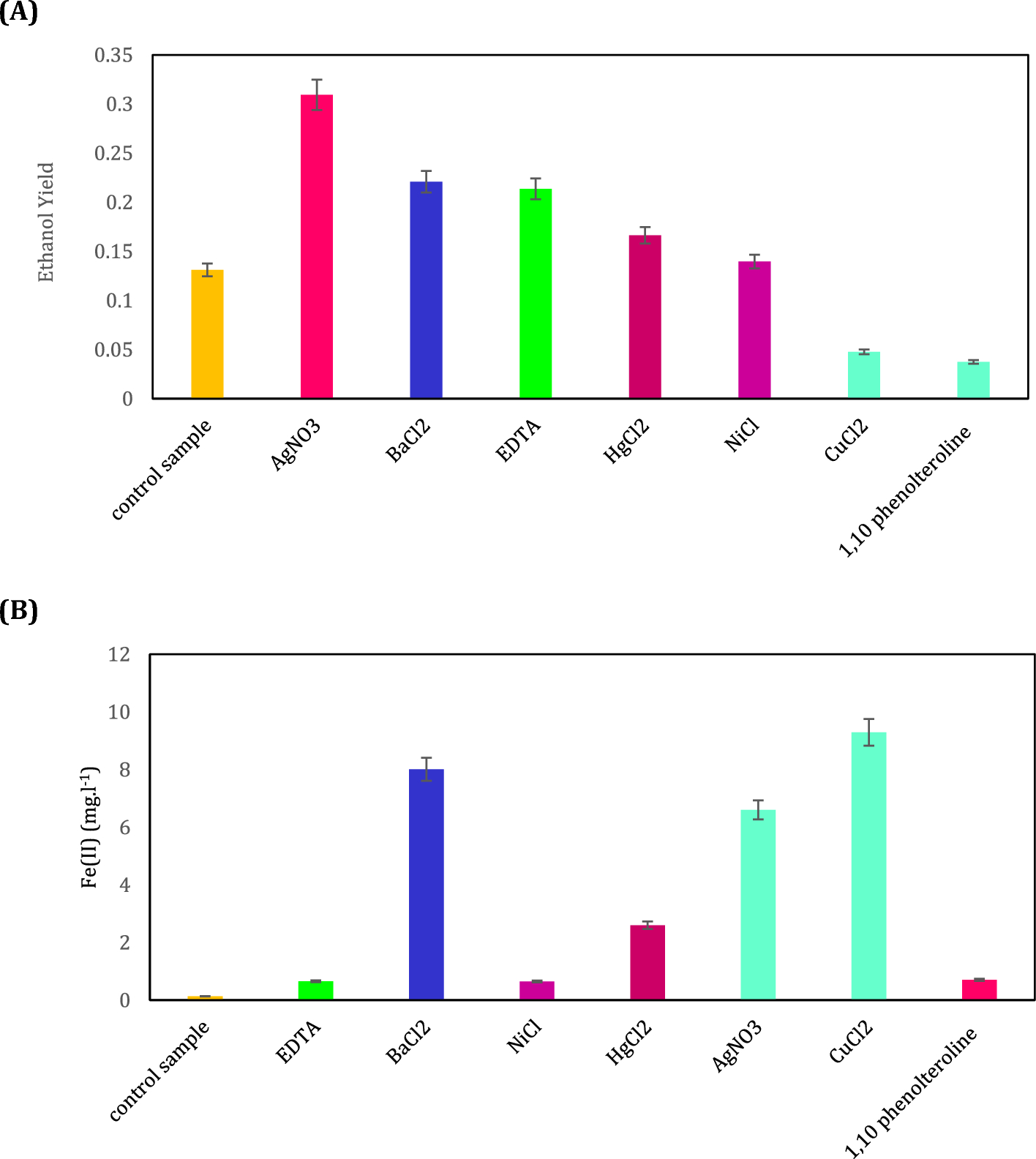

Figure 4
The effect of different regulatory compounds on (A) the amount of yield of ethanol production (namely the concentration of produced ethanol (g L−1) to the concentration of consumed glucose (g L−1)), and (B) the reduction of Fe (III) of the culture media of Z. mobilis.
