Figure 6 | Scientific Reports

Figure 6

From: EMT-related gene risk model establishment for prognosis and drug treatment efficiency prediction in hepatocellular carcinoma

Figure 6The alternative text for this image may have been generated using AI.

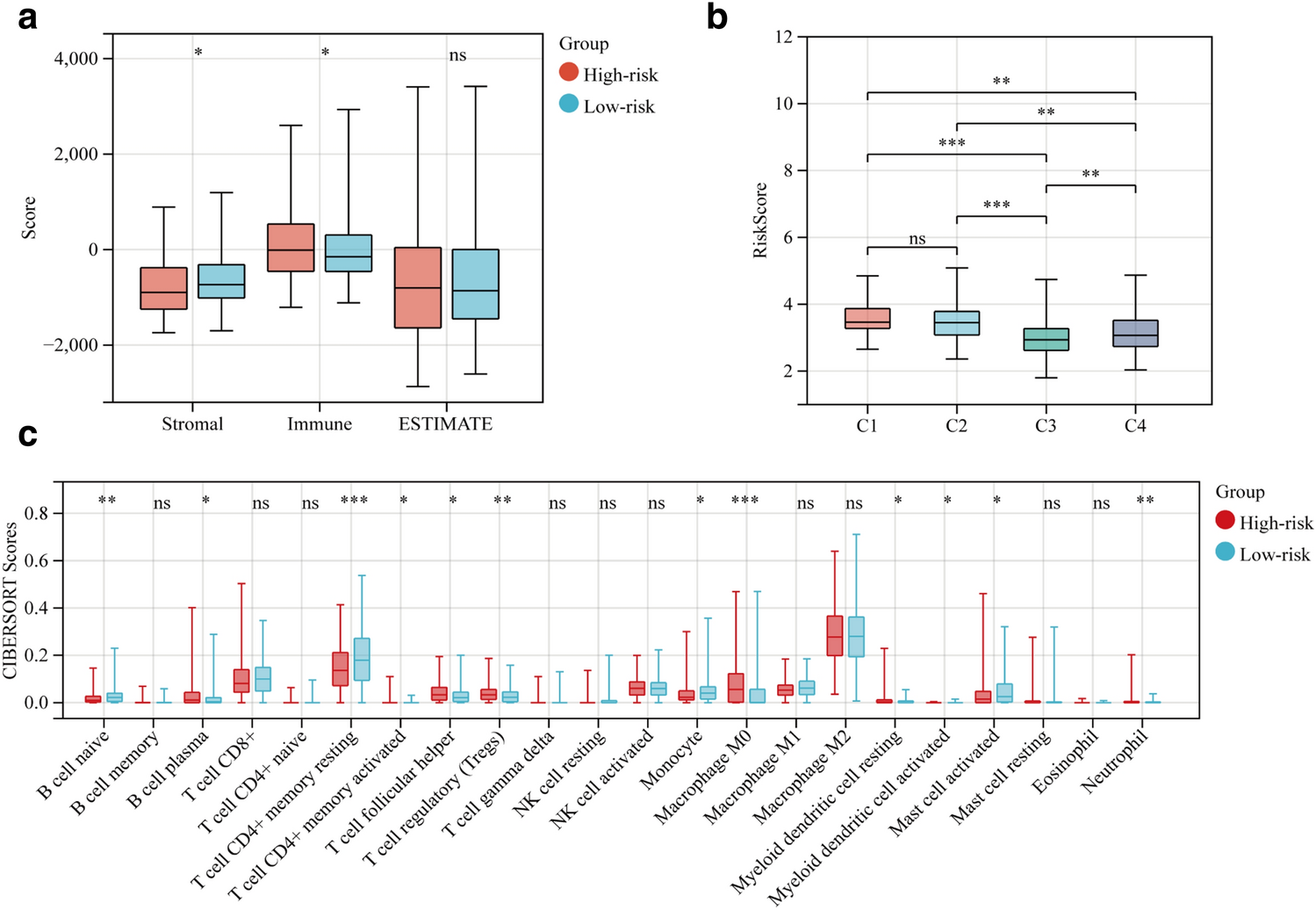

Different risk groups associated with the tumor immune microenvironment. (a) ESTIMATE algorithm to calculate Stromal score, Immune score, and ESTIMATE between high-risk and low-risk groups. (b) Comparison of different immune subtypes with risk scores. (c) CIBERSORT algorithm to calculate cell infiltration level between high-risk and low-risk groups. (*P < 0.05, **P < 0.01, ***P < 0.001, ns represents no statistical significance).
