Figure 5
From: Effective connectivity in a duration selective cortico-cerebellar network

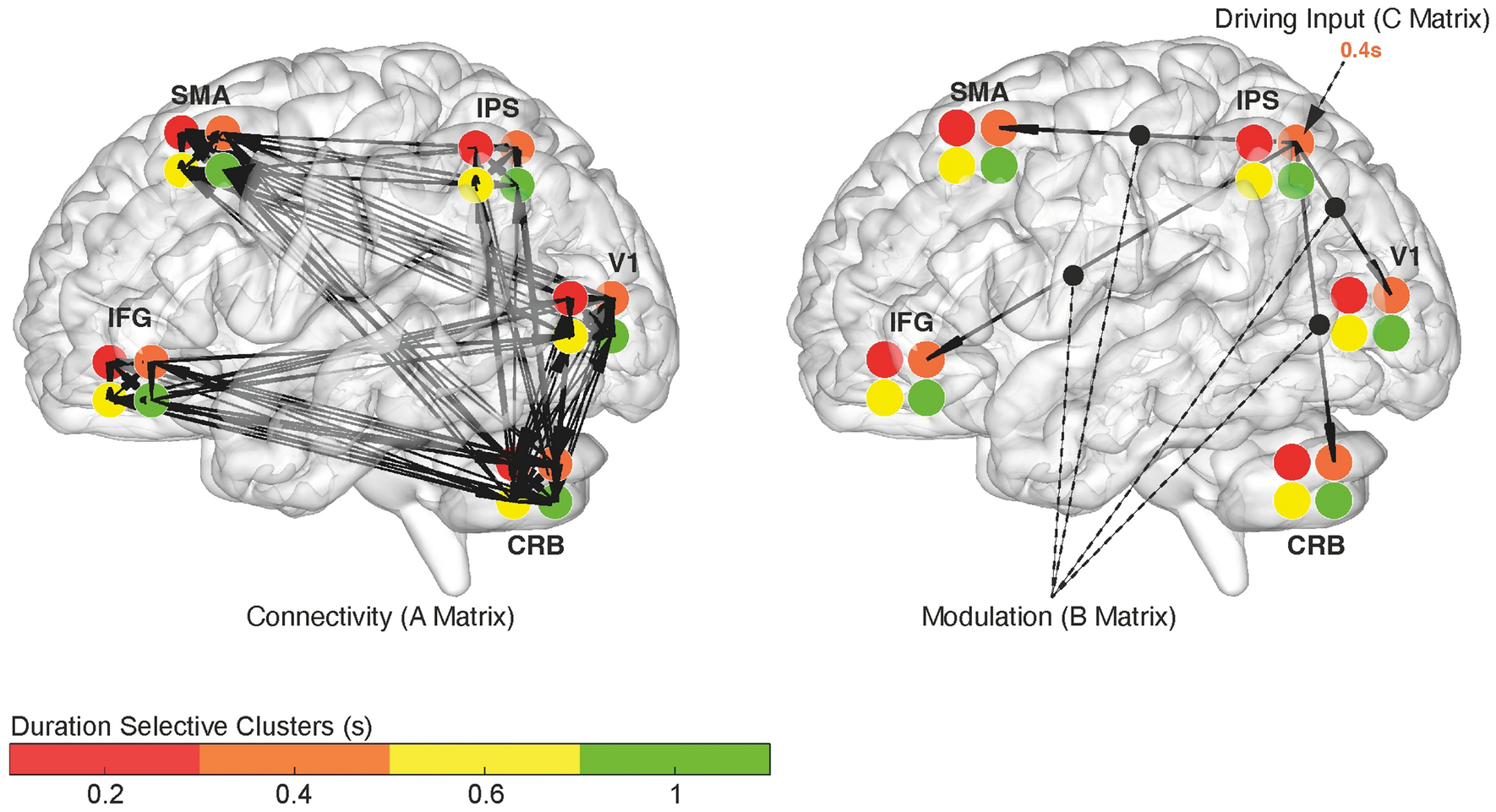

Winning model of the DCM 20-nodes network. Graph representation of the winning model. On the left-hand side is the A-matrix, on the right-hand side the B and C matrices. In the winning model of the 20-nodes DCM conduced on the entire dataset the network architecture (A-matrix) is fully connected while both connectivity strength (B-matrix) and driving input in IPS (C-matrix) are modulated in a duration dependent fashion.
