Figure 5
From: Effect of contact inhibition locomotion on confined cellular organization

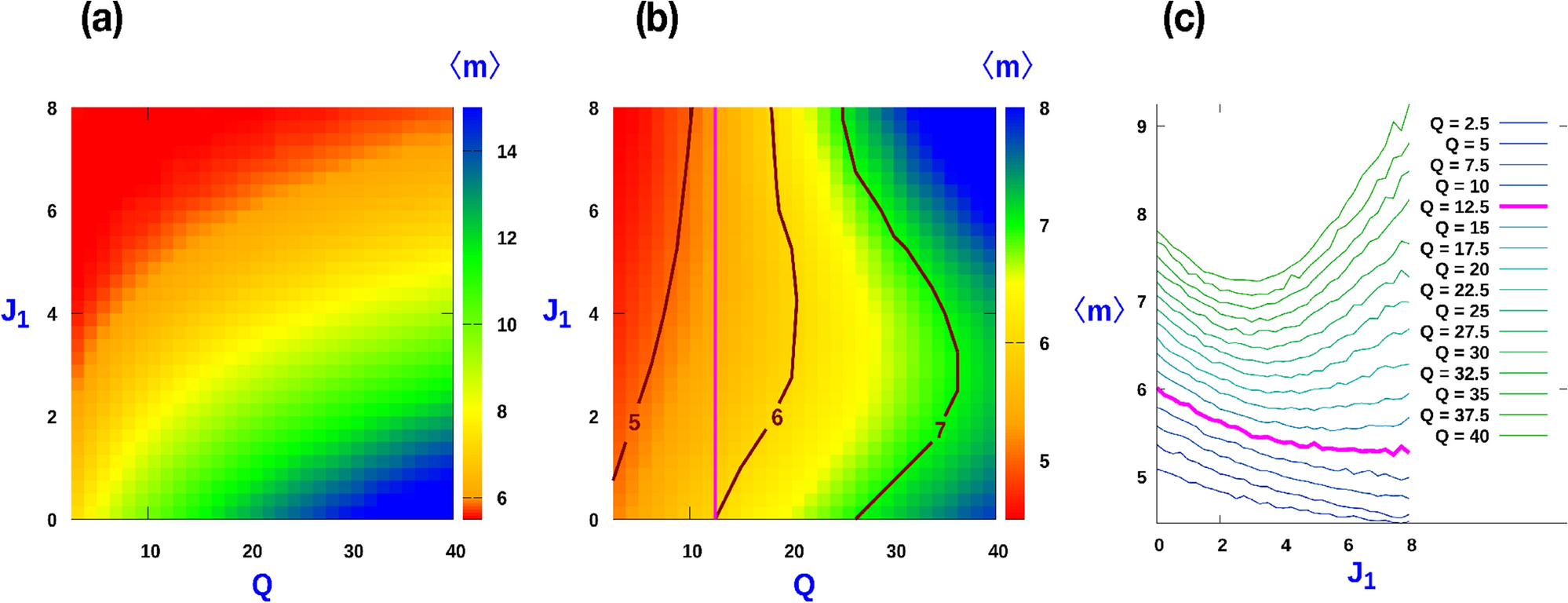

(a) Contour plot of average cluster size \(\langle m \rangle\) as function of \(J_1\) and Q when \(J_1 = J_2\) i.e. \(\Delta J = 0\). (b) Contour plot of average cluster size \(\langle m \rangle\) as function of \(J_1\) and Q for constant \(J_2 (J_2 = 4)\): Re-entrant like behaviour is observed for \(Q > Q_c\) with \(Q_c = 12.5\). (c) Plot of \(\langle m \rangle\) with \(J_1\) corresponding to (b). For all cases, MC simulations where done with \(L = 1000\) and averaging was done over 2000 samples at \(\rho = 0.8\).
