Figure 12
From: Abundant chaos in a mixer model with a hysteretic iron core inductance

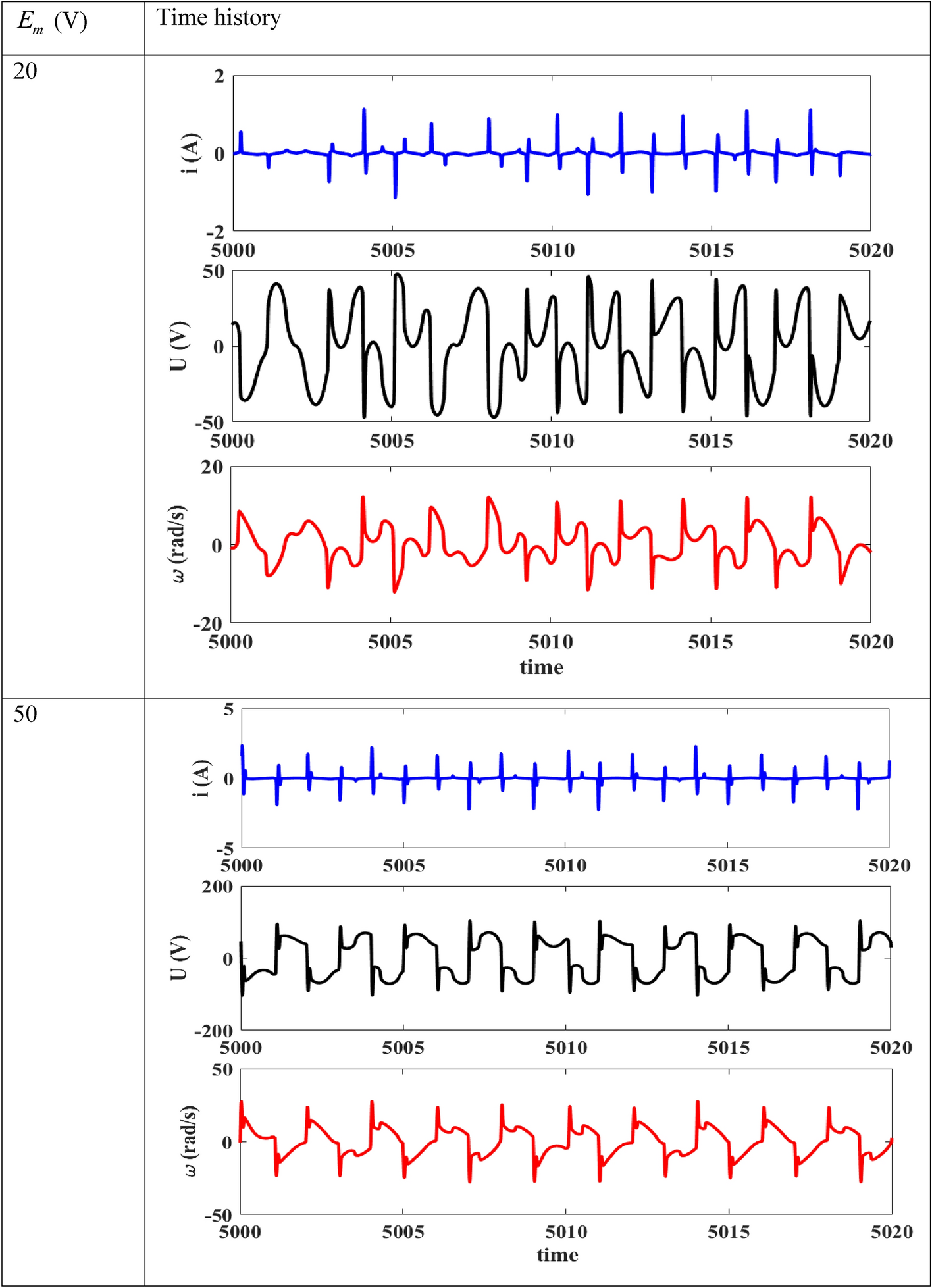

Time histories of the device for \(f\) = 50 Hz, \(R_{0} = 1 \, \Omega\), δ1 = 1.925.
