Figure 2

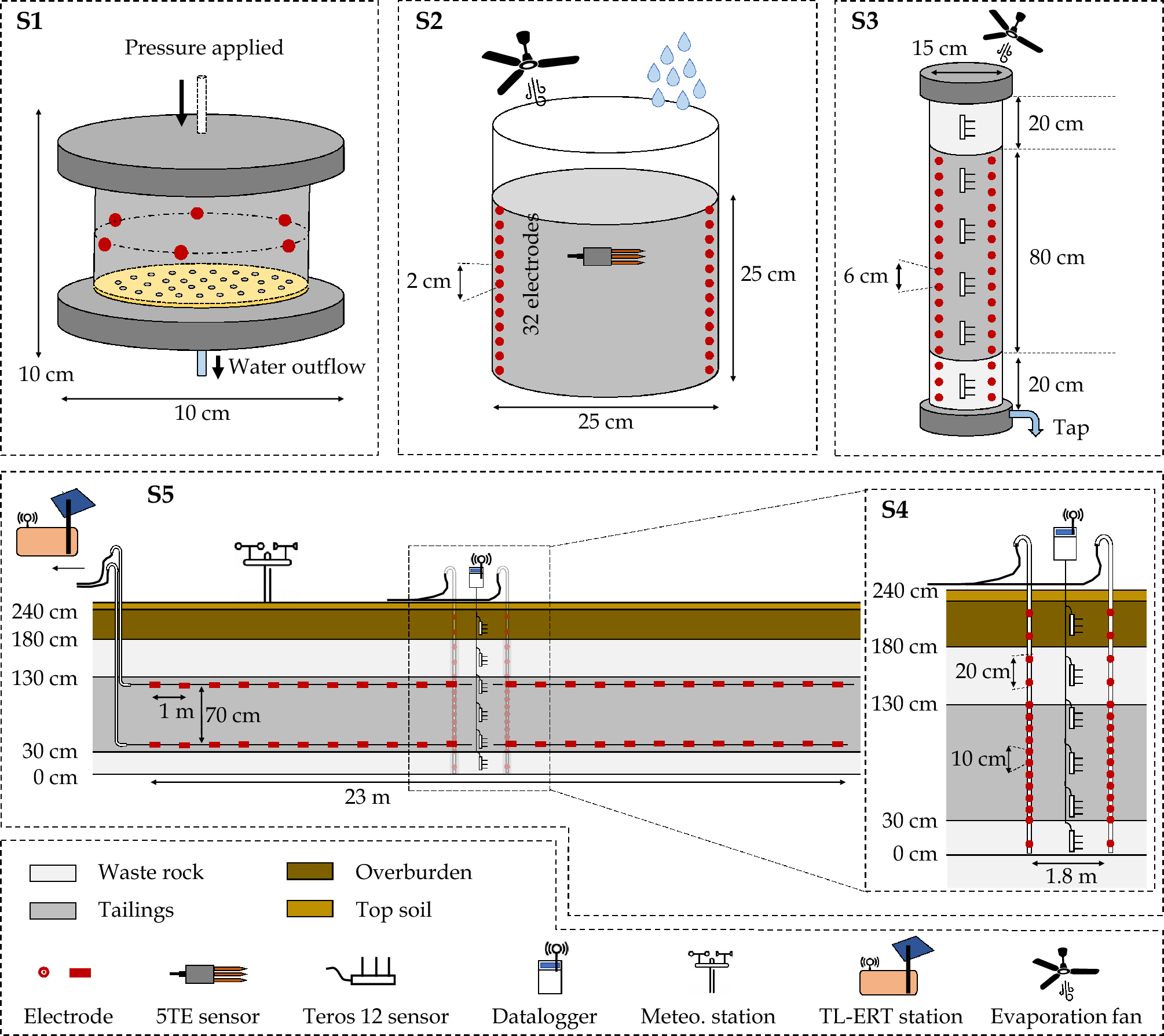

Illustration of the five scales investigated in this study to assess petrophysical relationships in mine tailings in the laboratory (S1—cell scale, S2—bucket scale and S3—column scale), and in the field (S4 - local scale and S5 - pilot scale).
