Figure 5

From: Low-cost prototyping of nitinol wires/frames using polymeric cores and sacrificial fixtures with application in individualized frames anchoring through the atrial septum

Figure 5

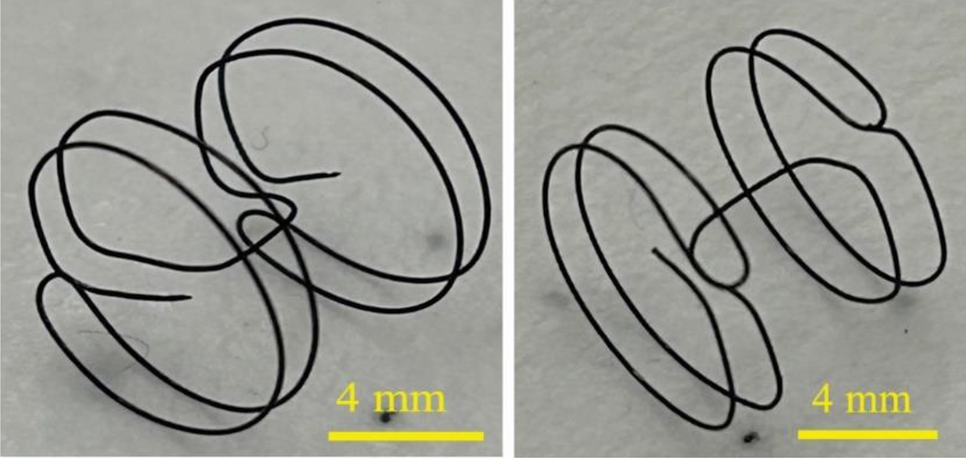

Nitinol with shape of Occluder. Enlarged view of NiTi frame (left and right are the same frame) with two pair of distinct concentric circular shaped walls connected at the center. This topology is suitable for occlusion of a defect on septum where it will locate at the center of the occluding disks.
