Figure 3

From: Molecular assessment of drug-phospholipid interactions consequent to cancer treatment: a study of anthracycline-induced cardiotoxicity

Figure 3

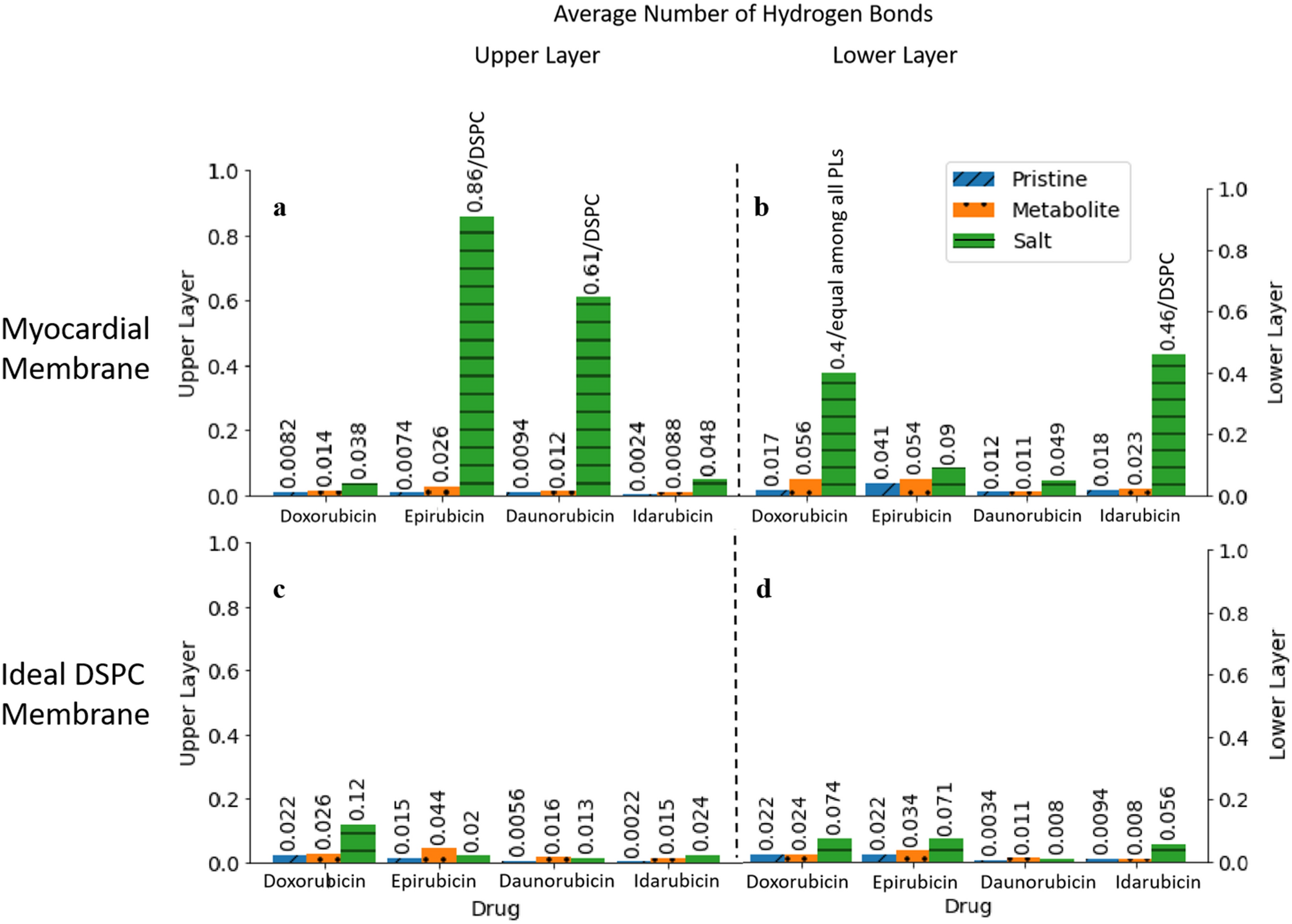

The average number of hydrogen bonds between each molecule and each membrane model: (a) the upper layer of the myocardial membrane, (b) the lower layer of the myocardial membrane, (c) the upper layer of the ideal DSPC membrane, (d) the lower layer of the ideal DSPC membrane. The bars representing the hydrogen bonds of some salts with the myocardial membrane are annotated with the type of phospholipid that contributes the most to forming hydrogen bonds.
