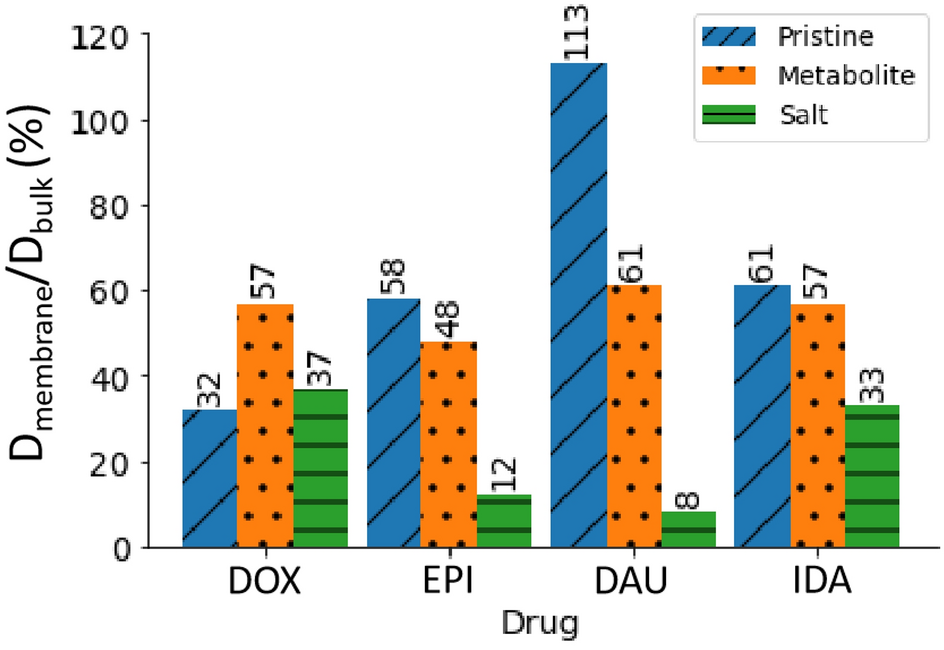

Figure 4

The percentage ratio between the drug diffusivity near the myocardial membrane D_membrane and its diffusivity in bulk water D_bulk. The lowest R² value of the linear fit of the mean square displacement data used to calculate D is 0.98.
