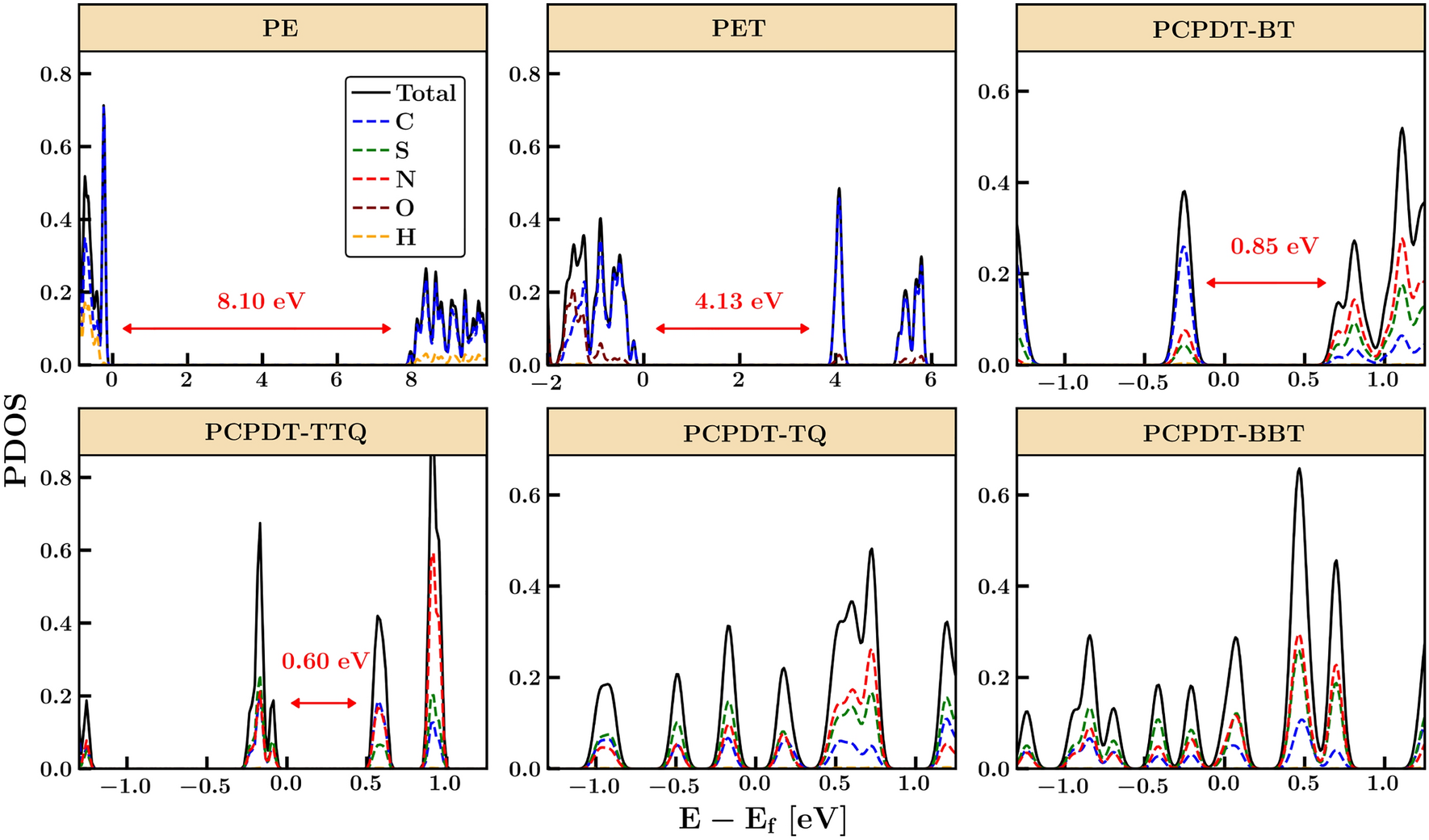

Figure 3
From: Electronic properties and optical spectra of donor–acceptor conjugated organic polymers
Projected density of states (PDOS) of organic polymers of PE, PET, PCPDT-BT, PCPDT-TTQ, PCPDT-TQ, and PCPDT-BBT computed using HSE06 method. Total DOS and the relative contributions of the individual atoms of the C, S, N, O and H atoms are shown. The computed electronic bandgaps obtained from band structure for PE, PET, and PCPDT-BT are also shown.
