Figure 2
From: Mechanisms of Wharton’s Jelly-derived MSCs in enhancing peripheral nerve regeneration

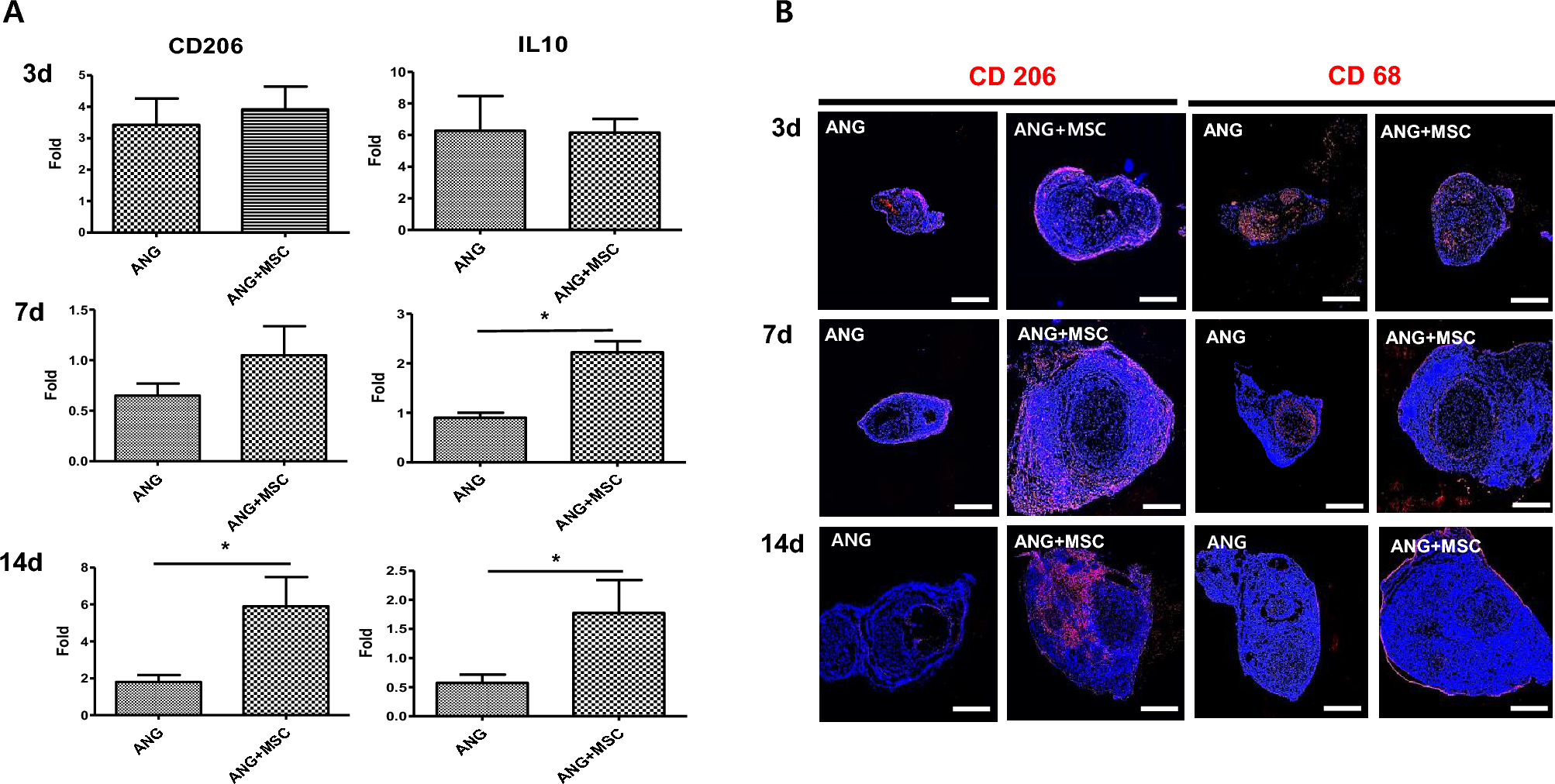

Analysis of the expression of macrophage markers. (A) RT-qPCR analysis of CD206 and IL10 in the control and WJ-MSCs groups. Expression levels were normalized against GAPDH expression. (B) Immunofluorescence for CD206 and CD68 in cross-sections at 3, 7, and 14 days post-implantation as indicated. Scale bar = 500 μm (*p < 0.05, Student’s t-test).
