Figure 9
From: Facile synthesis of ZnO/Hal nanocomposite for arsenite (As(III)) removal from aqueous media

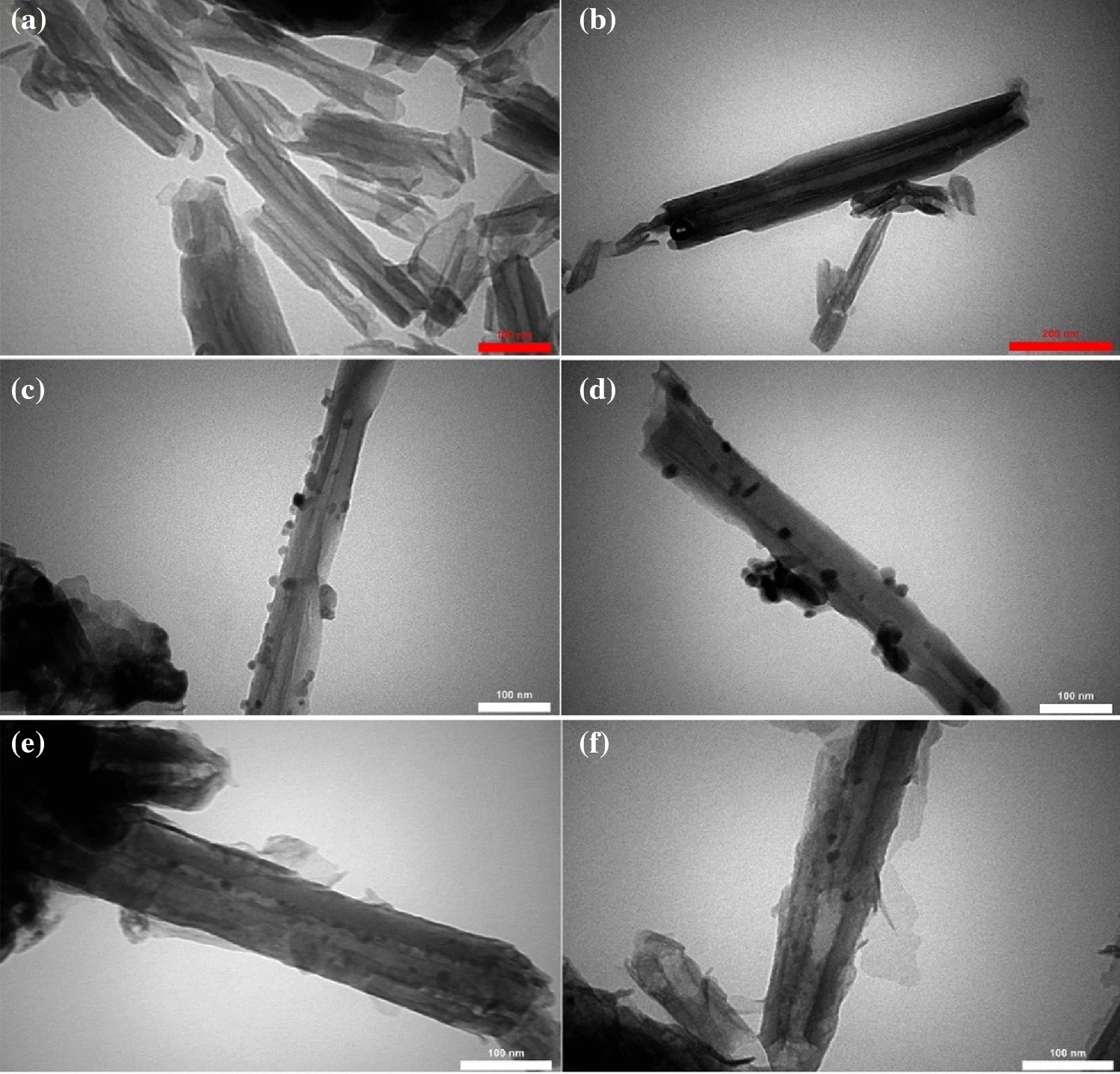

TEM graphs of raw Hal (a, b), seed growth of ZnO upon Hal surface (c, d), ZnO/Hal nanocomposites (e, f).
