Figure 5
From: Defects detection of GMAW process based on convolutional neural network algorithm

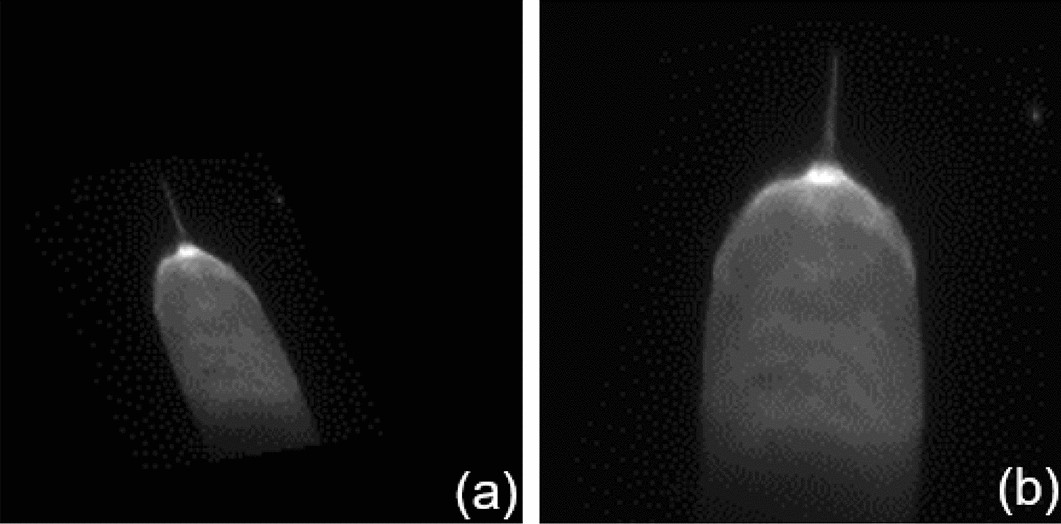

The comparison images of before and after calibration. (a) The image before the affine transformation. (b) The image after the affine transformation.
