Figure 14
From: Study of AEB and active seat belt on driver injury in vehicle–vehicle frontal oblique crash

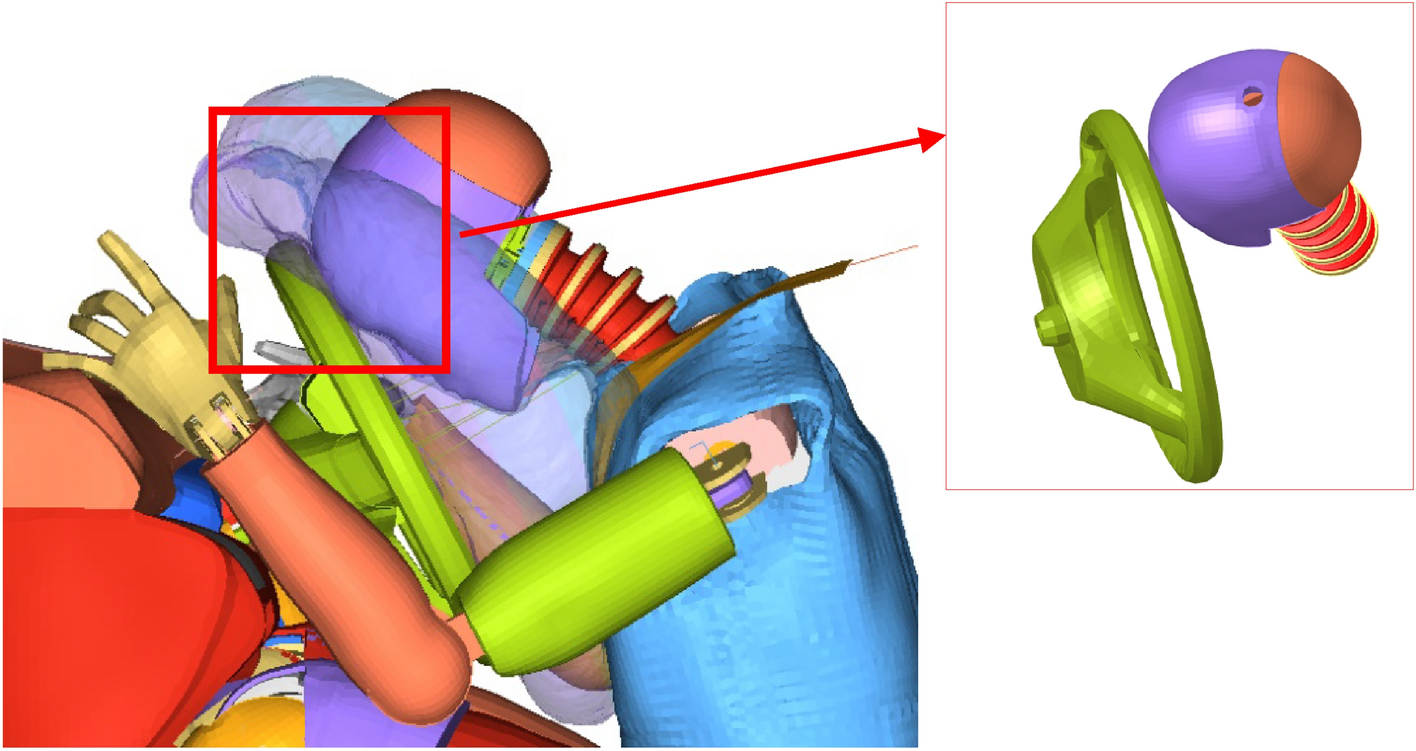

Airbag breakdown. The airbag’s internal pressure is insufficient to support the driver's head, resulting in the head colliding with the steering wheel behind the airbag and drastically increasing the HIC.
