Figure 5

From: Signal amplification of a quartz crystal microbalance immunosensor by gold nanoparticles-polyethyleneimine for hepatitis B biomarker detection

Figure 5

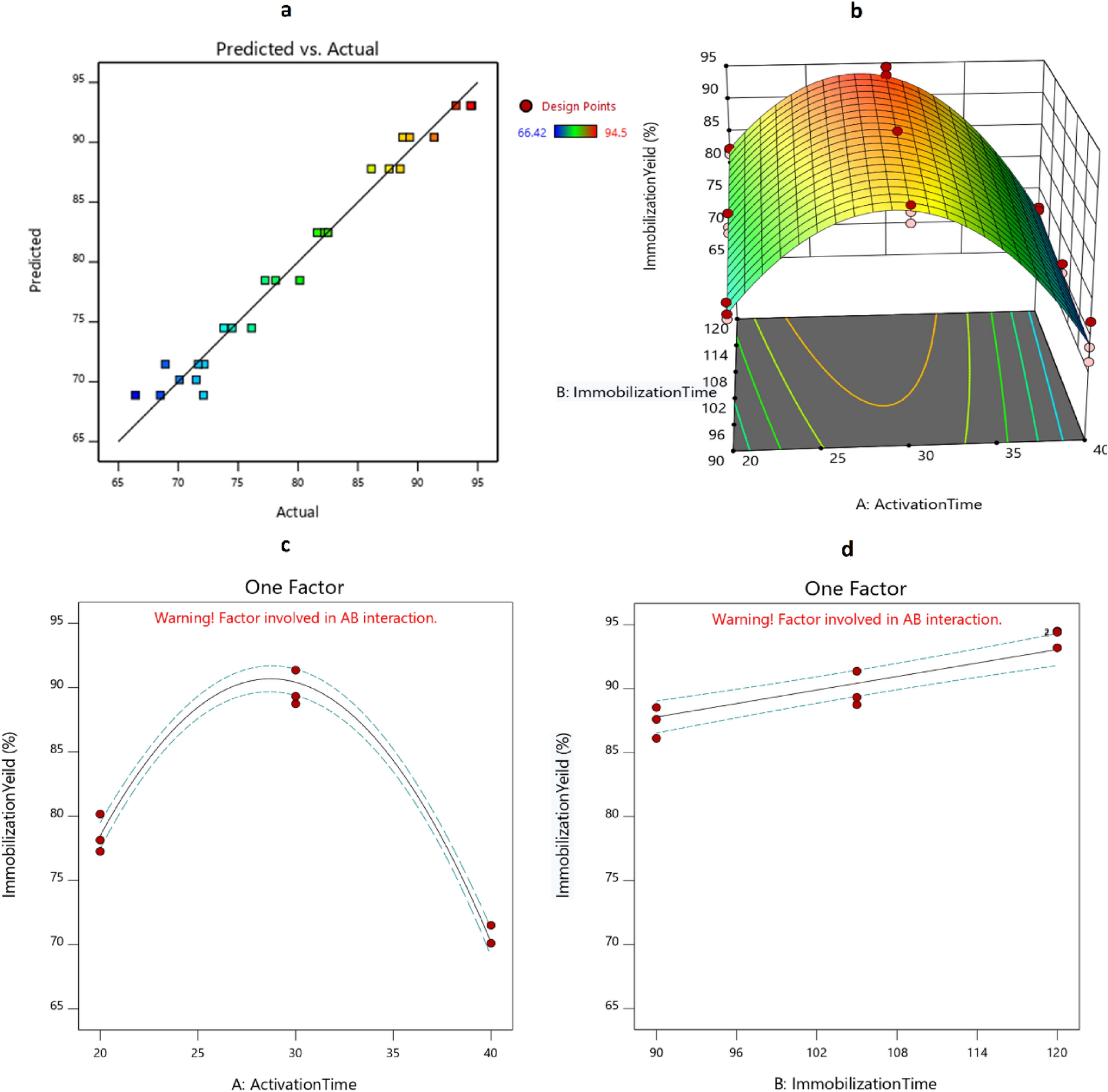

Modeling the effects of immobilization and activation times on the antibody immobilization yield. (a) Predicted versus actual plot, (b) the 3D-plot of the interaction of factors on immobilization yield, (c) the effect of activation time on immobilization yield, and (d) the effect of immobilization time on immobilization yield.
