From: Comparative genomics and proteomics analysis of phages infecting multi-drug resistant Escherichia coli O177 isolated from cattle faeces

Figure 7

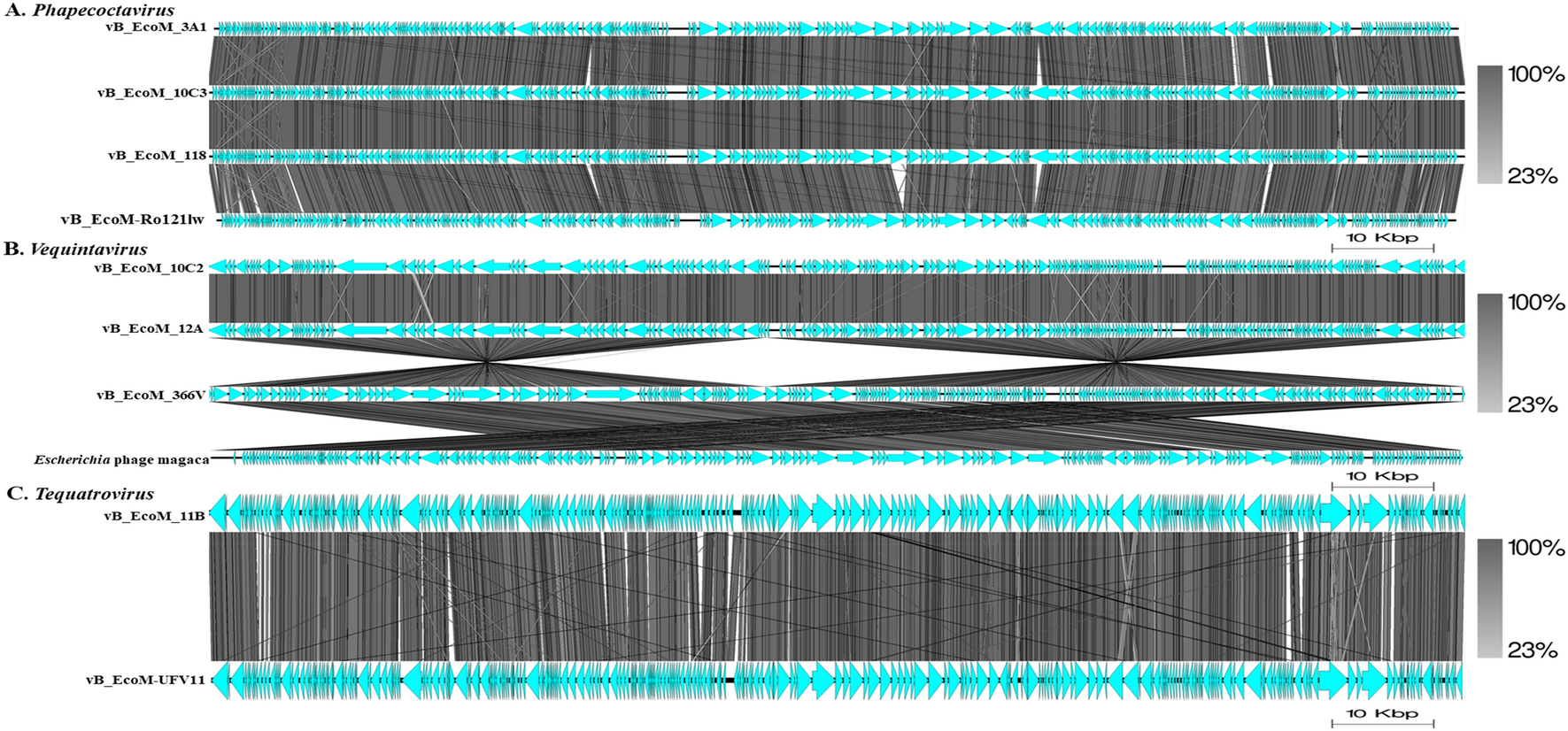

Comparison of the genome sequences of E. coli O177 phages with closely related members of Phapecoctavirus (A), Vequintavirus (B), and Tequatrovirus (C) genera, created using Easyfig. The grey colour between the genome maps indicates level of homology with the scales representing the percentage genome identity between the regions obtained through tBLASTx. The arrows represent the genes/CDSs. Genomes are drawn to scale; the scale bar indicates 10 Kbp.
